Shop LUTRON

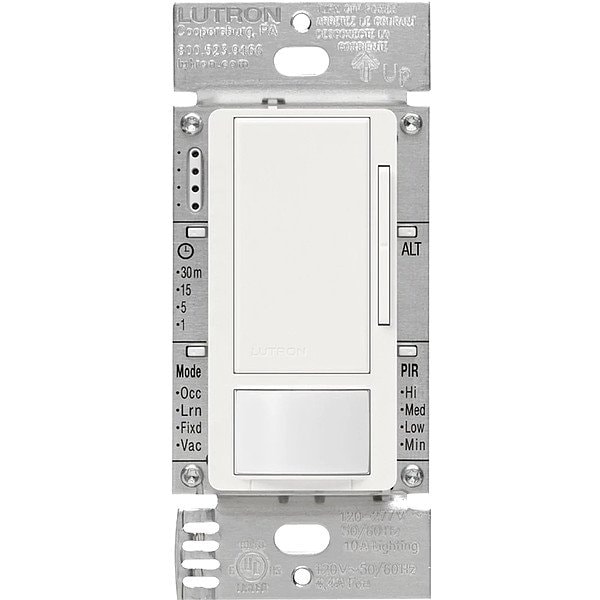

Dimming Occ/Vac Snsr, PIR, 120-277V AC, Wht

  • Mfr # MS-Z101-WH
  • Zoro # G9753791
product price:
$
95.89
/ea

Key Features

Item - Motion Sensing and Dimming
Dimming Vacancy Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC to 277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MS-Z101-WH
Zoro #
G9753791
UPC #
784276099844
Country of Origin
Multiple
Item - Motion Sensing and Dimming
Dimming Vacancy Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC to 277V AC
Max. Capacity @ 120VAC
4.4A (Fan Motor), 8A (Fluorescent, LED)
Max. Capacity @ 277VAC
8A (Fluorescent, LED)
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Use With - Motion Sensing and Dimming
0 to 10V DC Dimming Ballasts
Coverage
900 sq. ft.
Sensing Technology
Passive Infrared (PIR)
Lighting Technology
Fluorescent, LED
Installation Location - Motion Sensor
Wall Switch Box
Voltage
120V AC to 277V AC
Timer Range
1, 5, 15, 30 min.
For Use With
8A Electronic Fluorescent Ballast or LED Drivers
Standards
Title 20/24 Compliant, UL Listed
Color
White
Time Delay
Adjustable
Item
Dimming Occupancy/Vacancy Sensor
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared
Description/Special Features
XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Smart Ambient Light Detection (ALD), Single Pole and 3-Way Switch Capability, Decora Style, 0-10V Dimmer
Installation Type
Wall
Coverage Angle - Motion Sensor
180 Degrees
Wall Plate
Not Included
Number of Buttons
3
Communication Method
Hard Wired
Fan Rated
Yes
Neutral Required
No
Maximum Detection Distance
30 ft
Coverage Angle
180 Degrees
Includes Motion Sensor
Yes
Maximum Operating Temperature
104 Degrees F
Compatible with Series
0 to 10V DC Dimming
Includes Wall Plate
Wall Plate Not Included
Dimming Type
Full Continuous Dimming
Series
Maestro
Load Rating @ 277V AC
8A (Fluorescent and LED)
Maximum Time Delay
30 min
Time Delay Adjustment Method
Adaptive
Load Rating @ 120V AC
8A (Fluorescent, LED)
Dimming Method
0-10V
Rated Frequency
50/60 Hz
Installation Location
Wall
Nightlight
No
Minimum Time Delay
1 min
Includes Dimming Switch
Dimming Switch Included
Manufacturer Warranty
5 yr
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Occupancy, Photocell, Vacancy
Maximum Coverage Area
900 sq ft
Minimum Coverage Area
400 sq ft
Horsepower Rating
3/16 hp
Operating Voltage
120 to 277V AC

Description

Dimming Occupancy/Vacancy Sensor, Number of Buttons 3, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series 0 to 10V DC Dimming, Lighting Technology Fluorescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 8A (Fluorescent, LED), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method 0-10V, Dimming Type Full Continuous Dimming
