  11. In-Wall Smart Switch, 120V AC, Wht

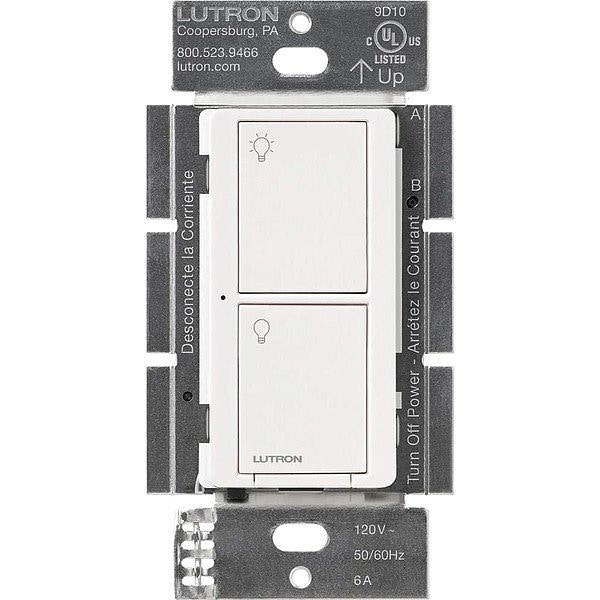

Lutron In-Wall Smart Switch, 120V AC, Wht PD-6ANS-WH - main

In-Wall Smart Switch, 120V AC, Wht

  • Mfr # PD-6ANS-WH

  • Zoro # G203076212

product price: $71.19
/ea

Key Features

Item - Motion Sensing and Dimming
Wireless Wall Switch
Switch Style - Motion Sensing and Dimming
Front Accessible Service Switch (FASS), Neutral-Wire Switch
Includes
Front Accessible Service Switch
Communication Method - Motion Sensing and Dimming
Wireless RF
Switch Type - Motion Sensing and Dimming
1-Pole, Multilocation
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PD-6ANS-WH
Zoro #
G203076212
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
4.69 in
Overall Width
2.94 in
Overall Depth
0.31 in

Details

Item - Motion Sensing and Dimming
Wireless Wall Switch
Switch Style - Motion Sensing and Dimming
Front Accessible Service Switch (FASS), Neutral-Wire Switch
Includes
Front Accessible Service Switch
Communication Method - Motion Sensing and Dimming
Wireless RF
Switch Type - Motion Sensing and Dimming
1-Pole, Multilocation
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
3.6 A (General Purpose Fan), 6 A (CFL, LED), 720 VA (MLV), 720 W (ELV, Halogen, Incandescent)
Color - Motion Sensing and Dimming
White
Communication Method
Wireless
Item
In-Wall Smart Switch
Description/Special Features
Green Status LED(s) to Indicate Load Status, Indoor Use Only, Use Lutron Patented Clear Connect RF Technology
Wall Plate
Not Included
Voltage
120V AC
Number of Buttons
2
Color
White
Sensing Technology
Switch Only
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Installation Location - Motion Sensor
Wall
Standards
Complies with the limits for a Class B Digital Device, Pursuant to Part 15 of the FCC Rules Industry Canada Certified, cULus Listed, FCC Approved, IFTEL Certified, NEMA 410, NOM
Rated Frequency
50/60 Hz
Minimum Operating Temperature
32 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Compatible with Series
Caseta
Installation Location
Wall
Includes Wall Plate
Wall Plate Not Included
Neutral Required
Yes
Illuminated
Yes
Compatible with Brand
Lutron
Includes Motion Sensor
No
Dimming Type
No Dimming
Load Rating @ 120V AC
3.6A (General Purpose Fan), 6A (CFL, LED), 720VA (MLV), 720W (ELV, Halogen, Incandescent)
Series
Caseta
Fan Rated
Yes
Maximum Operating Temperature
104 Degrees F
Nightlight
No
Dimming Method
No Dimming
Maximum Wattage
720W Lighting; 3.6A General Purpose Fan
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); 2-Gang Wallplate CW-2-XX (Gloss)
Application Type
Single-Pole or Multi-Location w/Pico(s)
Bulb Compatibility
CFL/LED, Fluorescent, Incandescent/Halogen, ELV, MLV, General Purpose Fan
Operating Voltage
120V AC

Description

In-Wall Smart Switch, Number of Buttons 2, Sensor Operation Not Applicable, Compatible with Series Caseta, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Switch Only, Load Rating @ 120V AC 3.6A (General Purpose Fan), 6A (CFL, LED), 720VA (MLV), 720W (ELV, Halogen, Incandescent), Communication Method Wireless, Maximum Coverage Area Not Applicable, Neutral Required Yes, Color White, Nightlight No, Dimming Method No Dimming
