  11. Lght Dmr, Switch Only, 120/277V AC, Wht

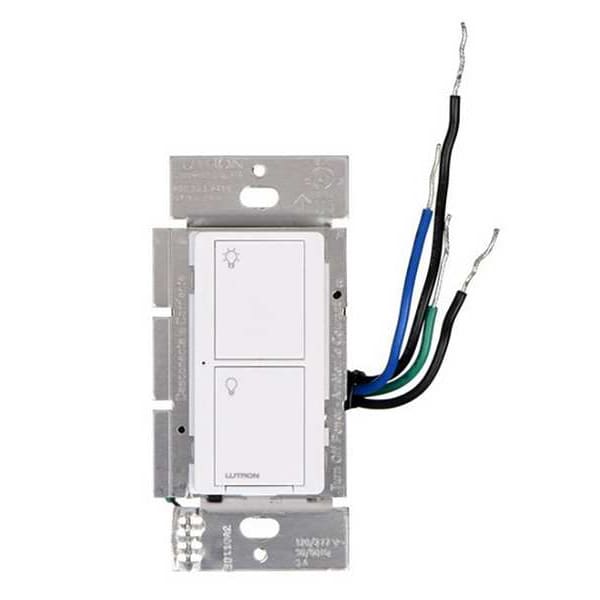

Lutron Lght Dmr, Switch Only, 120/277V AC, Wht PD-5WS-DV-WH - main

Lght Dmr, Switch Only, 120/277V AC, Wht

  • Mfr # PD-5WS-DV-WH

  • Zoro # G903076130

product price: $121.00
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Wireless Wall Switch
Switch Style - Motion Sensing and Dimming
Front Accessible Service Switch (FASS), Two-Wire Switch
Includes
Front Accessible Service Switch
Communication Method - Motion Sensing and Dimming
Wireless RF
Switch Type - Motion Sensing and Dimming
1-Pole, Multilocation
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PD-5WS-DV-WH
Zoro #
G903076130
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4.69 in
Overall Width
2.94 in
Overall Depth
0.31 in

Details

Item - Motion Sensing and Dimming
Wireless Wall Switch
Switch Style - Motion Sensing and Dimming
Front Accessible Service Switch (FASS), Two-Wire Switch
Includes
Front Accessible Service Switch
Communication Method - Motion Sensing and Dimming
Wireless RF
Switch Type - Motion Sensing and Dimming
1-Pole, Multilocation
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
Max. Capacity @ 120VAC
3 A (General Purpose Fan), 475 W (MLV), 5 A (CFL, LED), 600 VA (MLV), 600 W (ELV, Halogen, Incandescent)
Max. Capacity @ 277VAC
1,075 W (MLV), 1,350 VA (MLV), 1,350 W (ELV, Halogen, Incandescent), 3 A (General Purpose Fan), 5 A (CFL, LED)
Color - Motion Sensing and Dimming
White
Installation Location - Motion Sensor
Wall
Number of Buttons
2
Sensing Technology
Switch Only
Color
White
Standards
Complies with the limits for a Class B Digital Device, Pursuant to Part 15 of the FCC Rules Industry Canada Certified, cULus Listed, FCC Approved, IFTEL Certified, NEMA 410, NOM
Communication Method
Wireless
Item
Lighting Dimmer
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Voltage
120/277V AC
Wall Plate
Not Included
Description/Special Features
Green Status LED(s) to Indicate Load Status, Indoor Use Only, Use Lutron Patented Clear Connect RF Technology
Minimum Operating Temperature
32 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Series
Caseta
Dimming Type
No Dimming
Illuminated
Yes
Compatible with Series
Caseta
Neutral Required
No
Compatible with Brand
Lutron
Includes Wall Plate
Wall Plate Not Included
Dimming Method
No Dimming
Includes Motion Sensor
No
Load Rating @ 277V AC
1,075W (MLV), 1,350VA (MLV), 1,350W (ELV, Halogen, Incandescent), 3A (General Purpose Fan), 5A (CFL, LED)
Rated Frequency
50/60 Hz
Maximum Operating Temperature
104 Degrees F
Load Rating @ 120V AC
3A (General Purpose Fan), 475W (MLV), 5A (CFL, LED), 600VA (MLV), 600W (ELV, Halogen, Incandescent)
Fan Rated
Yes
Nightlight
No
Installation Location
Wall
Application Type
Single-Pole, 3-way, or Multi-Location w/Pico(s)
Maximum Wattage
600W Lighting (120V); 3A General Purpose Fan
Bulb Compatibility
CFL/LED, Fluorescent, Incandescent/Halogen, ELV, MLV, General Purpose Fan
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); 2-Gang Wallplate CW-2-XX (Gloss)
Operating Voltage
120/277V AC

Description

Lighting Dimmer, Number of Buttons 2, Sensor Operation Not Applicable, Compatible with Series Caseta, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120/277V AC, Sensing Technology Switch Only, Load Rating @ 120V AC 3A (General Purpose Fan), 475W (MLV), 5A (CFL, LED), 600VA (MLV), 600W (ELV, Halogen, Incandescent), Communication Method Wireless, Maximum Coverage Area Not Applicable, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming
