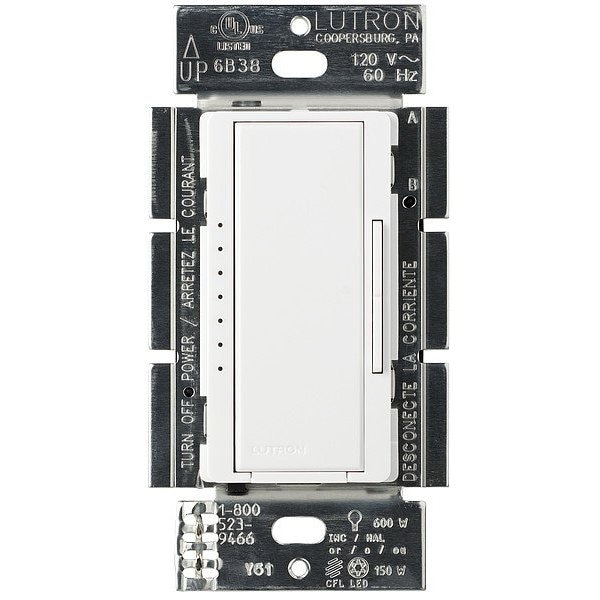

Lighting Dimmer, Incandescent, Rocker

  • Mfr # MACL-153M-WH
  • Zoro # G4631261
product price:
$
37.79
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way, Multilocation
Number of Gangs
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MACL-153M-WH
Zoro #
G4631261
UPC #
784276010658
Country of Origin
Multiple
Item - Motion Sensing and Dimming
Lighting Dimmer
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way, Multilocation
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
150 W (CFL, LED), 600 W (Halogen, Incandescent)
Color - Motion Sensing and Dimming
White
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Style
Rocker
Max. Capacity
150W (CFL/LED), 600W (Incandescent/Halogen)
Installation Location - Motion Sensor
Wall Switch Box
Voltage
120V AC
Description/Special Features
LEDs Indicate Light Level, Tap Off, Tap On to Favorite Level, Tap Twice for Full On
Item
Lighting Dimmer
Lamp Type
CFL, LED, Halogen, Incandescent
Switch Type
1-Pole, 3-Way, Multilocation
Wall Plate
Not Included
Color
White
Standards
NOM, UL 1472/CSA C22.2 184.1
Switch Style
Push Button On/Off, Rocker Dimming
Number of Buttons
3
Maximum Operating Temperature
104 Degrees F
Rated Frequency
60 Hz
Compatible with Series
Claro
Minimum Operating Temperature
32 Degrees F
Ballast Type
Compact Fluorescent Ballast, Hi-lume LED Driver
Includes Wall Plate
Wall Plate Not Included
Neutral Required
No
Load Rating @ 120V AC
150W (LED), 600W (Halogen, Incandescent)
Dimming Type
Full Continuous Dimming
Nightlight
Yes
Dimming Method
Line Voltage
Series
Maestro CL
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); SC-1-XX (Satin) 2-Gang Wallplate CW-2-XX (Gloss); SC-2-XX (Satin)
Maximum Wattage
150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Application Type
Single-Pole, 3-Way, or Multi-Location
Operating Voltage
120V AC
Compatible Series
Claro
Wire Color
White

Dimensions

Wall Box Size
Single Gang
Overall Width
2.94 in
Overall Height
4.69 in
Overall Depth
1.46 in

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Multilocation, Operating Voltage 120V AC, Load Rating @ 120V AC 150W (LED), 600W (Halogen, Incandescent), Switch Style Push Button On/Off, Rocker Dimming, Neutral Required No, Color White, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Maestro CL, Nightlight Yes, Number of Gangs 1
