  11. Lighting Dimmer, Rocker/Slide, Almond

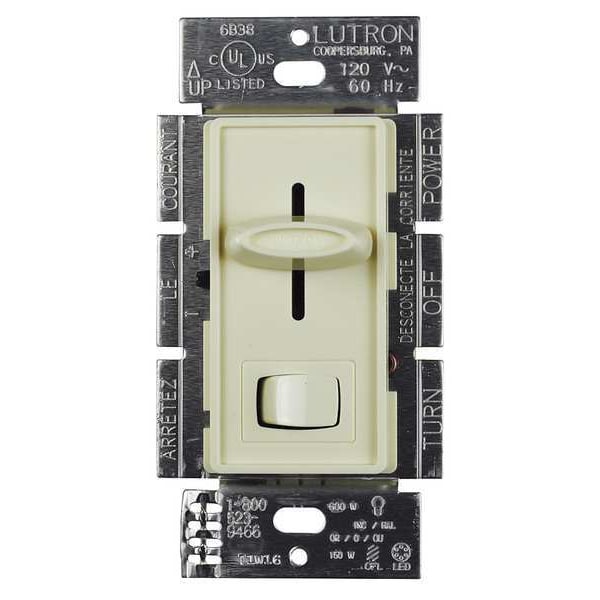

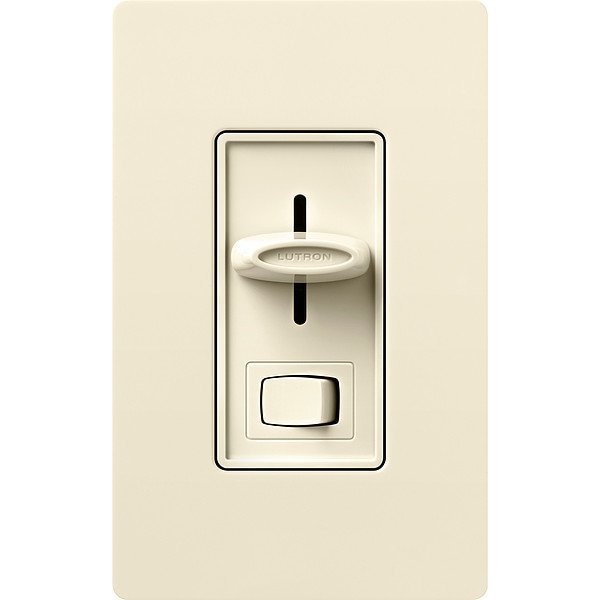

Lutron Lighting Dimmer, Rocker/Slide, Almond SCL-153P-AL - main

Lighting Dimmer, Rocker/Slide, Almond

  • Mfr # SCL-153P-AL

  • Zoro # G5391224

product price: $26.15
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Slide with On/Off Rocker
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCL-153P-AL
Zoro #
G5391224
UPC #
784276008945
Country of Origin
China

Dimensions

Wall Box Size
Single Gang
Overall Depth
0.3 in
Overall Width
2.94 in
Overall Height
4.69 in

Details

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Slide with On/Off Rocker
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
150 W (CFL, LED), 600 W (Halogen, Incandescent)
Color - Motion Sensing and Dimming
Almond
Lamp Type
CFL, LED, Halogen, Incandescent
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Color
Almond
Item
Lighting Dimmer
Wall Plate
Not included
Standards
NOM, UL 1472/CSA C22.2 184.1
Style
Rocker/Slide
Control Method
2-Wire
Description/Special Features
UL Listed to Control Dimmable Compact Fluorescent Lamps with Integrated Ballast, Dimmable LED with Integrated Driver, Halogen, Incandescent, Low-End Adjustment to Accommodate A Wide Range of Bulbs, Switch Returns Load to Previous Level, For Use With Fluorescent, LED, CFL
Max. Capacity
600W (Incandescent/Halogen), 150W (Dimmable CFL/LED)
Installation Location - Motion Sensor
Wall Switch Box
Switch Type
1-Pole, 3-Way
Voltage
120V AC
Switch Style
Rocker On/Off, Slide Dimming
Load Rating @ 120V AC
150W (CFL, LED), 600W (Halogen, Incandescent)
Number of Switches
1
Rated Frequency
60 Hz
Includes Wall Plate
Wall Plate Not Included
Compatible with Series
Claro
Maximum Operating Temperature
104 Degrees F
Neutral Required
No
Minimum Operating Temperature
32 Degrees F
Dimming Type
Full Continuous Dimming
Dimming Method
Line Voltage
Series
Skylark
Ballast Type
Compact Fluorescent Ballast, Hi-lume LED Driver
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); 2-Gang Wallplate CW-2-XX (Gloss)
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Application Type
Single-Pole or 3-Way
Maximum Wattage
150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 150W (CFL, LED), 600W (Halogen, Incandescent), Switch Style Rocker On/Off, Slide Dimming, Neutral Required No, Color Almond, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Skylark, Number of Gangs 1, Compatible with Series Claro
