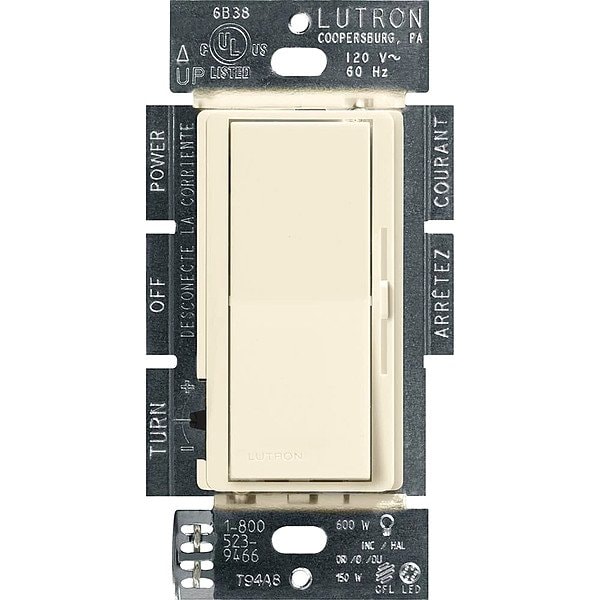

Lutron Lighting Dimmer, Slide, 1-Pole/3-Way DVCL-153P-AL - main

Lighting Dimmer, Slide, 1-Pole/3-Way

  • Mfr # DVCL-153P-AL

  • Zoro # G3675856

product price: $30.79
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Rocker
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVCL-153P-AL
Zoro #
G3675856
UPC #
027557002998
Country of Origin
Mexico

Dimensions

Wall Box Size
Single Gang
Overall Width
2.94 in
Overall Depth
0.3 in
Overall Height
4.69 in

Details

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Rocker
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
150 W (CFL, LED), 600 W (Halogen, Incandescent)
Color - Motion Sensing and Dimming
Almond
Voltage
120V AC
Lamp Type
CFL, LED, Halogen, Incandescent
Style
Paddle
Item
Lighting Dimmer
Installation Location - Motion Sensor
Wall Switch Box
Wall Plate
Not included
Switch Type
1-Pole, 3-Way
Max. Capacity
150W (CFL/LED), 600W (Incandescent/Halogen)
Standards
NOM, UL 1472/CSA C22.2 184.1
Description/Special Features
Paddle On/Off and Mini Slider to Dim or Brighten
Color
Almond
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Switch Style
Rocker On/Off, Mini-Slide Dimming
Compatible with Series
Claro
Maximum Operating Temperature
104 Degrees F
Ballast Type
Compact Fluorescent Ballast, Hi-lume LED Driver
Dimming Type
Full Continuous Dimming
Neutral Required
No
Includes Wall Plate
Wall Plate Not Included
Number of Switches
1
Load Rating @ 120V AC
150W (CFL, LED), 600W (Halogen, Incandescent)
Series
Diva
Minimum Operating Temperature
32 Degrees F
Rated Frequency
60 Hz
Dimming Method
Line Voltage
Coordinating Wallplates
Single Gang Wallplate CW-1-XX (Gloss); SC-1-XX (Satin) 2-Gang Wallplate CW-2-XX (Gloss); SC-2-XX (Satin)
Maximum Wattage
150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Application Type
Single-Pole or 3-Way
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 150W (CFL, LED), 600W (Halogen, Incandescent), Switch Style Rocker On/Off, Mini-Slide Dimming, Neutral Required No, Color Almond, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Diva, Number of Gangs 1, Compatible with Series Claro
