  11. Lighting Dimmer, Toggle, Almond, 120V

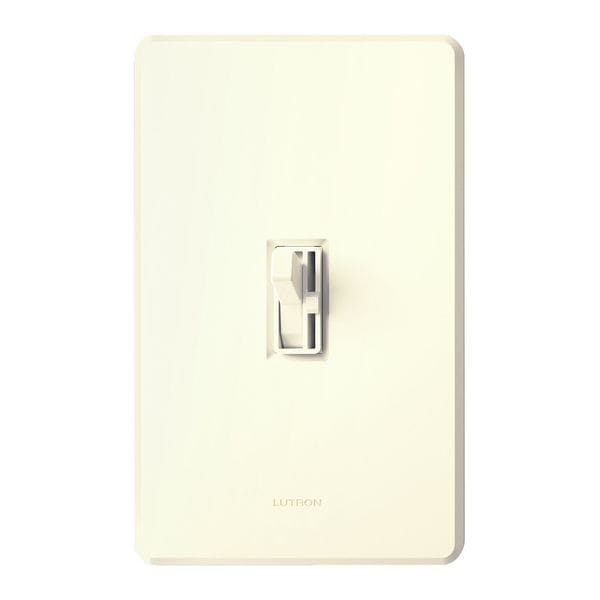

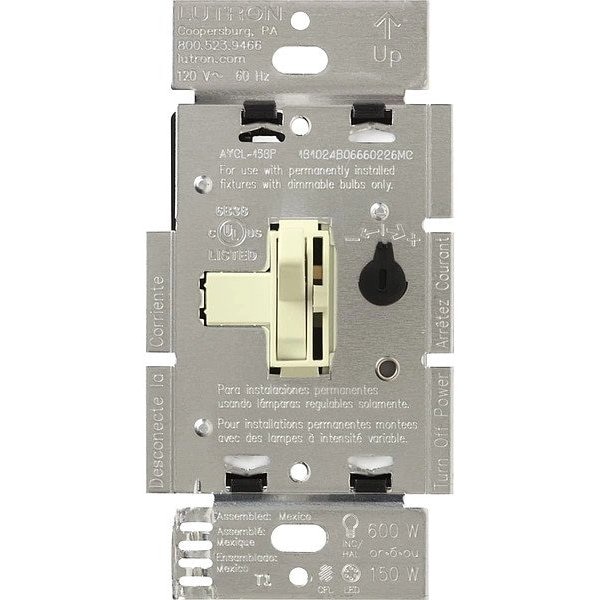

Lutron Lighting Dimmer, Toggle, Almond, 120V AYCL-153P-AL - main

Lighting Dimmer, Toggle, Almond, 120V

  • Mfr # AYCL-153P-AL

  • Zoro # G3695386

product price: $28.25
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Toggle
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYCL-153P-AL
Zoro #
G3695386
UPC #
027557825955
Country of Origin
Mexico

Dimensions

Wall Box Size
Single Gang
Overall Width
2.86 in
Overall Height
4.6 in
Overall Depth
0.23 in

Details

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Toggle
Includes
Wire Nuts
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
150 W (CFL, LED), 600 W (Halogen, Incandescent)
Color - Motion Sensing and Dimming
Almond
Item
Lighting Dimmer
Color
Almond
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Style
Toggle
Lamp Type
CFL, LED, Halogen, Incandescent
Wall Plate
Not included
Switch Type
1-Pole, 3-Way
Max. Capacity
150W (CFL/LED), 600W (Incandescent/Halogen)
Voltage
120V AC
Installation Location - Motion Sensor
Wall Switch Box
Standards
NOM, UL 1472/CSA C22.2 184.1
Description/Special Features
Toggle On/Off and Mini Slider to Dim or Brighten
Switch Style
Toggle On/Off, Mini-Slide Dimming
Ballast Type
Compact Fluorescent Ballast
Minimum Operating Temperature
32 Degrees F
Compatible with Series
Fassada
Load Rating @ 120V AC
150W (CFL, LED), 600W (Halogen, Incandescent)
Number of Switches
1
Includes Wall Plate
Wall Plate Not Included
Rated Frequency
60 Hz
Neutral Required
No
Series
Ariadni
Maximum Operating Temperature
104 Degrees F
Dimming Type
Full Continuous Dimming
Dimming Method
Line Voltage
Maximum Wattage
150W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Application Type
Single-Pole or 3-Way
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Coordinating Wallplates
Single Gang Wallplate FG-1-XX; 2-Gang Wallplate FG-2-XX
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 150W (CFL, LED), 600W (Halogen, Incandescent), Switch Style Toggle On/Off, Mini-Slide Dimming, Neutral Required No, Color Almond, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Ariadni, Number of Gangs 1, Compatible with Series Fassada
