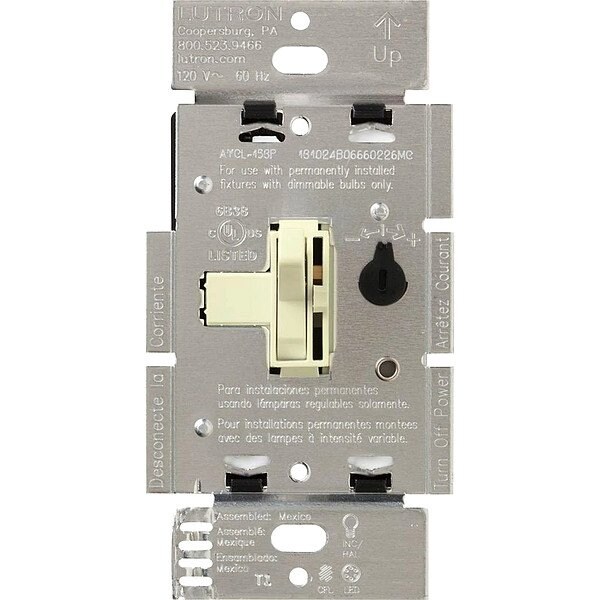

Lutron Lighting Dimmer, Toggle, Almond AYCL-253P-AL - main

Lighting Dimmer, Toggle, Almond

  • Mfr # AYCL-253P-AL

  • Zoro # G9754001

product price: $44.19
/ea

Key Features

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Toggle
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYCL-253P-AL
Zoro #
G9754001
UPC #
784276090117
Country of Origin
Mexico

Dimensions

Wall Box Size
Single Gang
Overall Width
2.86 in
Overall Depth
0.23 in
Overall Height
4.6 in

Details

Item - Motion Sensing and Dimming
Lighting Dimmer
Switch Style - Motion Sensing and Dimming
Concealed with On/Off Toggle
Communication Method - Motion Sensing and Dimming
Hard Wired
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
250 W (CFL, LED), 600 W (Incandescent, Halogen)
Color - Motion Sensing and Dimming
Almond
Style
Toggle
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Color
Almond
Description/Special Features
For Indoor Use Only, HED(TM) Technology That Dims Circuitry Designed for Compatibility with Most High Efficacy Light Bulbs
Installation Location - Motion Sensor
Wall Switch Box
Switch Type
1-Pole, 3-Way
Voltage
120V AC
Lamp Type
CFL, LED, Halogen, Incandescent
Max. Capacity
250W (CFL/LED), 600W (Incandescent/Halogen)
Item
Lighting Dimmer
Wall Plate
Not included
Standards
CSA Certified, UL Listed
Switch Style
Toggle On/Off, Mini-Slide Dimming
Maximum Operating Temperature
104 Degrees F
Number of Switches
1
Load Rating @ 120V AC
250W (CFL, LED), 600W (Incandescent, Halogen)
Neutral Required
No
Series
Ariadni
Dimming Method
Line Voltage
Compatible with Series
Fassada
Minimum Operating Temperature
32 Degrees F
Dimming Type
Full Continuous Dimming
Rated Frequency
60 Hz
Ballast Type
Compact Fluorescent Ballast, Hi-lume LED Driver
Includes Wall Plate
Wall Plate Not Included
Application Type
Single-Pole or 3-Way
Bulb Compatibility
Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Maximum Wattage
250W for Dimmable CFL/LED bulbs; 600W for Incandescents/Halogens
Coordinating Wallplates
Single Gang Wallplate FG-1-XX; 2-Gang Wallplate FG-2-XX
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 250W (CFL, LED), 600W (Incandescent, Halogen), Switch Style Toggle On/Off, Mini-Slide Dimming, Neutral Required No, Color Almond, Load Rating @ 277V AC Not Applicable, Dimming Method Line Voltage, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series Ariadni, Number of Gangs 1, Compatible with Series Fassada
