  11. Occ/Vac Dimmer Snsr, Wall, Black

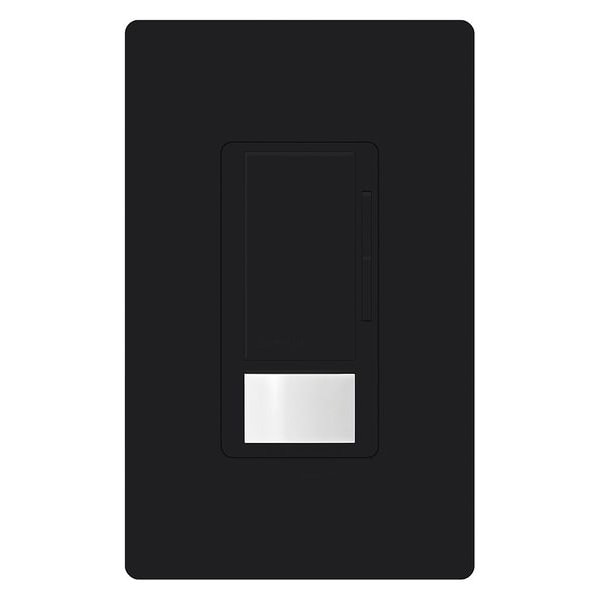

Lutron Occ/Vac Dimmer Snsr, Wall, Black MS-Z101-BL - main

Occ/Vac Dimmer Snsr, Wall, Black

  • Mfr # MS-Z101-BL

  • Zoro # G9753843

product price: $99.69
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Motion Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-Z101-BL
Zoro #
G9753843
UPC #
784276099905
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
900 sq ft
Suggested Mounting Height - Motion Sensor
4 ft
Maximum Mounting Height
4 ft
Overall Height
4.69 in
Overall Width
2.94 in
Overall Depth
0.31 in

Details

Item - Motion Sensing and Dimming
Motion Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
Max. Capacity @ 120VAC
4.4A (Fan Motor), 8A (Fluorescent, LED)
Max. Capacity @ 277VAC
8A (Fluorescent, LED)
Color - Motion Sensing and Dimming
Black
Timer Range
1, 5, 15, 30 min.
Time Delay Adjustment Method - Motion Sensor
Adjustable
Standards
Title 20/24 Compliant, UL Listed
Coverage
900 sq. ft.
Installation Location - Motion Sensor
Wall Switch Box
Sensor Type
Passive Infrared
Description/Special Features
XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Smart Ambient Light Detection (ALD), Single Pole and 3-Way Switch Capability, Decora Style, 0-10V Dimmer
Time Delay
Adjustable
Installation Type
Wall
Sensing Technology
Passive Infrared (PIR)
Viewing Angle
180 Degrees
Use With - Motion Sensing and Dimming
0 to 10V DC Dimming Ballasts
Color
Black
Coverage Angle - Motion Sensor
180 Degrees
For Use With
8A Electronic Fluorescent Ballast or LED Drivers
Lighting Technology
Fluorescent, LED
Item
Motion Sensor
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Voltage
120 to 277V AC
Wall Plate
Not Included
Communication Method
Hard Wired
Number of Buttons
3
Coverage Angle
180 Degrees
Dimming Type
Full Continuous Dimming
Sensor Operation
Occupancy, Photocell, Vacancy
Time Delay Adjustment Method
Adaptive
Includes Dimming Switch
Dimming Switch Included
Rated Frequency
50/60 Hz
Includes Motion Sensor
Yes
Load Rating @ 277V AC
8A (Fluorescent and LED)
Series
Maestro
Dimming Method
0-10V
Maximum Coverage Area
900 sq ft
Maximum Detection Distance
30 ft
Includes Wall Plate
Wall Plate Not Included
Installation Location
Wall
Neutral Required
No
Manufacturer Warranty
5 yr
Nightlight
No
Maximum Operating Temperature
104 Degrees F
Maximum Time Delay
30 min
Fan Rated
Yes
Minimum Coverage Area
400 sq ft
Horsepower Rating
3/16 hp
Minimum Operating Temperature
32 Degrees F
Compatible with Series
0 to 10V DC Dimming
Minimum Time Delay
1 min
Load Rating @ 120V AC
8A (Fluorescent, LED)
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 3, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series 0 to 10V DC Dimming, Lighting Technology Fluorescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 8A (Fluorescent, LED), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color Black, Nightlight No, Dimming Method 0-10V, Dimming Type Full Continuous Dimming
