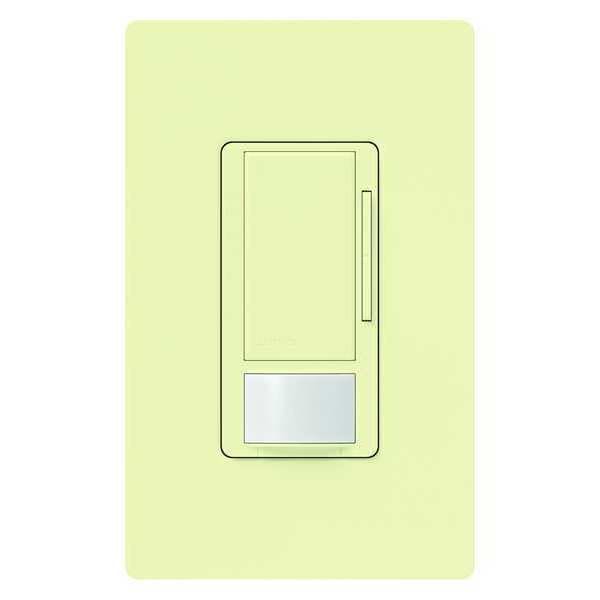

Lutron Vacancy Dimmer Snsr, Wall, Almond MS-Z101-V-AL - main

Vacancy Dimmer Snsr, Wall, Almond

  • Mfr # MS-Z101-V-AL

  • Zoro # G9753782

product price: $98.29
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Dimming Vacancy Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-Z101-V-AL
Zoro #
G9753782
UPC #
784276100168
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
900 sq ft
Suggested Mounting Height - Motion Sensor
4 ft
Maximum Mounting Height
4 ft
Overall Width
2.94 in
Overall Depth
0.31 in
Overall Height
4.69 in

Details

Item - Motion Sensing and Dimming
Dimming Vacancy Sensor
Includes
Yellow Jumper Wire
Communication Method - Motion Sensing and Dimming
Hard Wired
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
Max. Capacity @ 120VAC
4.4A (Fan Motor), 8A (Fluorescent, LED)
Max. Capacity @ 277VAC
8A (Fluorescent, LED)
Color - Motion Sensing and Dimming
Almond
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Installation Location - Motion Sensor
Wall Switch Box
Timer Range
1, 5, 15, 30 min.
Description/Special Features
XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Smart Ambient Light Detection (ALD), Single Pole and 3-Way Switch Capability, Decora Style, 0-10V Dimmer
Time Delay Adjustment Method - Motion Sensor
Adjustable
Sensing Technology
Passive Infrared (PIR)
Installation Type
Wall
Sensor Type
Passive Infrared
Viewing Angle
180 Degrees
Use With - Motion Sensing and Dimming
0 to 10V DC Dimming Ballasts
Coverage Angle - Motion Sensor
180 Degrees
For Use With
8A Electronic Fluorescent Ballast or LED Drivers
Standards
Title 20/24 Compliant, UL Listed
Color
Almond
Lighting Technology
Fluorescent, LED
Time Delay
Adjustable
Coverage
900 sq. ft.
Item
Vacancy Dimmer Sensor
Voltage
120 to 277V AC
Wall Plate
Not Included
Communication Method
Hard Wired
Number of Buttons
3
Sensor Operation
Photocell, Vacancy
Horsepower Rating
3/16 hp
Manufacturer Warranty
5 yr
Neutral Required
No
Installation Location
Wall
Maximum Coverage Area
900 sq ft
Rated Frequency
50/60 Hz
Dimming Method
0-10V
Dimming Type
Full Continuous Dimming
Minimum Time Delay
1 min
Maximum Detection Distance
30 ft
Includes Dimming Switch
Dimming Switch Included
Coverage Angle
180 Degrees
Series
Maestro
Minimum Operating Temperature
32 Degrees F
Includes Wall Plate
Wall Plate Not Included
Time Delay Adjustment Method
Adaptive
Nightlight
No
Includes Motion Sensor
Yes
Compatible with Series
0 to 10V DC Dimming
Maximum Operating Temperature
104 Degrees F
Fan Rated
Yes
Maximum Time Delay
30 min
Load Rating @ 120V AC
8A (Fluorescent, LED)
Minimum Coverage Area
400 sq ft
Load Rating @ 277V AC
8A (Fluorescent and LED)
Operating Voltage
120 to 277V AC

Description

Vacancy Dimmer Sensor, Number of Buttons 3, Sensor Operation Photocell, Vacancy, Compatible with Series 0 to 10V DC Dimming, Lighting Technology Fluorescent, LED, Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 8A (Fluorescent, LED), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color Almond, Nightlight No, Dimming Method 0-10V, Dimming Type Full Continuous Dimming, Includes Dimming Switch Dimming Switch Included
