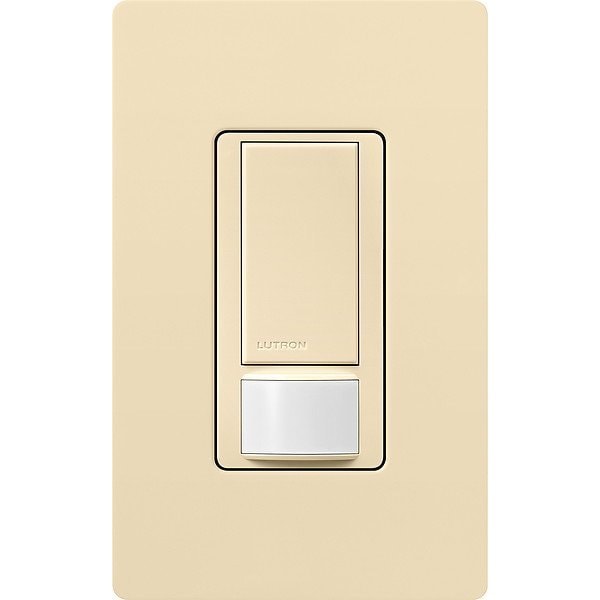

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Ivory, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-OPS2-IV

  • Zoro # G4584772


product price: $29.19
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Coverage Angle - Motion Sensor
180 Degrees
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Watts @ 120V
240
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-OPS2-IV
Zoro #
G4584772
UPC #
027557982672
Country of Origin
China

Dimensions

Overall Depth
0.31 in
Overall Height
4.69 in
Maximum Mounting Height
4 ft
Overall Width
2.94 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Coverage Angle - Motion Sensor
180 Degrees
Item
Occupancy Sensor
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Watts @ 120V
240
Time Delay
Adjustable
Includes
Wire Nuts
Color
Ivory
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Sensor Type
Passive Infrared
Standards
NOM, UL Listed
Viewing Angle
180 Degrees
Max. Capacity @ 120VAC
2A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Communication Method
Hard Wired
Number of Gangs
1
Includes Wall Plate
Wall Plate Not Included
Rated Frequency
50/60 Hz
Fan Rated
No
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
32 Degrees F
Time Delay Adjustment Method
Adaptive
Compatible with Series
Universal
Maximum Time Delay
30 min
Sensor Operation
Occupancy, Photocell, Vacancy
Includes Dimming Switch
Dimming Switch Not Included
Series
Maestro
Neutral Required
No
Maximum Coverage Area
900 sq ft
Minimum Time Delay
1 min
Installation Location
Wall Mount
Minimum Coverage Area
400 sq ft
Maximum Detection Distance
30 ft
Nightlight
No
Coverage Angle
180 Degrees
Includes Motion Sensor
Yes
Number of Buttons
1
Manufacturer Warranty
5 yr
Operating Voltage
120V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 2A, Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
