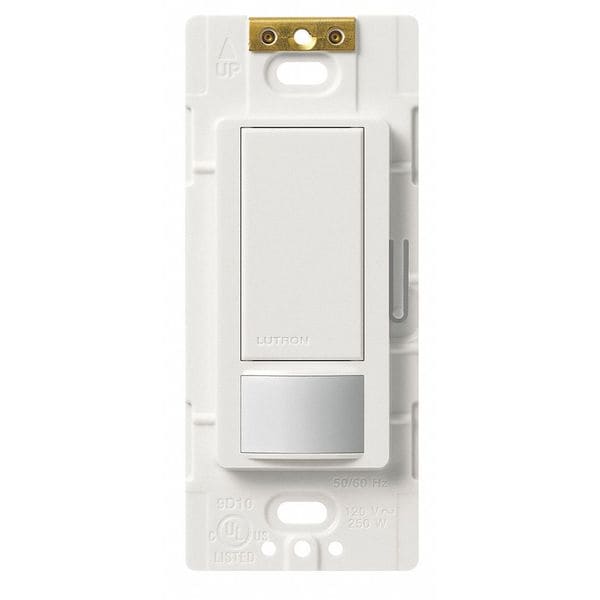

Lutron Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED MS-OPS6M2-DV-WH - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-OPS6M2-DV-WH

  • Zoro # G4653065

product price:  $43.59
/ea

Key Features

Installation Location
Wall Mount
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell, Vacancy
Load Rating @ 120V AC
3A, Fan, 6A, Lighting
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MS-OPS6M2-DV-WH
Zoro #
G4653065
UPC #
027557984324
Country of Origin
Multiple

Dimensions

Maximum Mounting Height
4 ft
Overall Depth
0.31 in
Overall Width
2.94 in
Overall Height
4.69 in

Details

Item
Occupancy Sensor
Installation Location
Wall Mount
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell, Vacancy
Load Rating @ 120V AC
3A, Fan, 6A, Lighting
Communication Method
Hard Wired
Color
White
Operating Voltage
120 to 277V AC
Maximum Coverage Area
900 sq ft
Standards
NOM, UL Listed
Includes
Wire Nuts
Max. Capacity @ 120VAC
4.4A (Fan Motor), 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Watts @ 120V
720
Time Delay
1 min, 5 min, 15 min, 30 min
Description/Special Features
Single-Pole/Multi-Location, Auto-On/Auto-Off or Manual-On/Auto-Off, No Neutral Required, High-Low Sensitivity Adjustment, Crush/Tamper Resistant Lens
Viewing Angle
180 Degrees
Coverage Angle - Motion Sensor
180 Degrees
Watts @ 277V
1650
Max. Capacity @ 277VAC
6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Number of Gangs
1
Rated Frequency
50/60 Hz
Manufacturer Warranty
5 yr
Includes Wall Plate
Wall Plate Not Included
Maximum Operating Temperature
104 Degrees F
Compatible with Series
Universal
Fan Rated
Yes
Minimum Operating Temperature
32 Degrees F
Load Rating @ 277V AC
6A (Lighting)
Maximum Detection Distance
30 ft
Neutral Required
No
Includes Dimming Switch
Dimming Switch Not Included
Includes Motion Sensor
Yes
Series
Maestro
Nightlight
No
Minimum Time Delay
1 min
Number of Buttons
1
Time Delay Adjustment Method
Adaptive
Maximum Time Delay
30 min
Minimum Coverage Area
400 sq ft

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 3A (Fan), 6A (Lighting), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
