  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

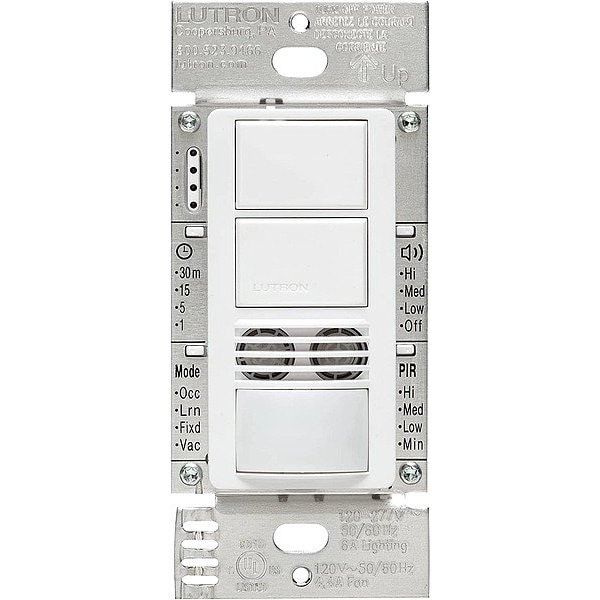

Lutron Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED MS-B202-WH - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 900 sq ft, Fluorescent, Halogen, Incandescent, LED

  • Mfr # MS-B202-WH

  • Zoro # G9753931

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Sensor Type
Passive Infrared/Ultrasonic
Standards
NOM, Title 20/24 Compliant, ULR Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-B202-WH
Zoro #
G9753931
UPC #
784276086288
Country of Origin
China

Dimensions

Maximum Mounting Height
4 ft
Overall Width
2.94 in
Overall Height
4.69 in
Overall Depth
0.31 in

Details

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Sensor Type
Passive Infrared/Ultrasonic
Standards
NOM, Title 20/24 Compliant, ULR Listed
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
Description/Special Features
Dual-Circuit, Single Pole/3-Way, XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Sensitivity Adjustment, Switches All Lighting Loads, Decora Style
Color
White
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Max. Capacity @ 120VAC
4.4A (Fan Motor), 6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Max. Capacity @ 277VAC
6A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent and Electronic Fluorescent
Time Delay
Adjustable
Item
Occupancy Sensor
Includes
Yellow Jumper Wire
Communication Method
Hard Wired
Number of Gangs
1
Load Rating @ 277V AC
6A (Lighting)
Sensor Operation
Occupancy, Vacancy
Fan Rated
Yes
Coverage Type
Small Motion
Maximum Operating Temperature
104 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Minimum Coverage Area
400 sq ft
Rated Frequency
50/60 Hz
Includes Wall Plate
Wall Plate Not Included
Installation Location
Wall Mount
Maximum Coverage Area
900 sq ft
Compatible with Series
Universal
Neutral Required
Yes
Number of Buttons
2
Series
Maestro
Nightlight
No
Horsepower Rating
3/16 hp
Manufacturer Warranty
5 yr
Minimum Time Delay
1 min
Coverage Angle
180 Degrees
Minimum Operating Temperature
32 Degrees F
Load Rating @ 120V AC
4.4A, Fan, 6A, Lighting
Includes Motion Sensor
Yes
Maximum Time Delay
30 min
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 4.4A (Fan), 6A (Lighting), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required Yes, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
