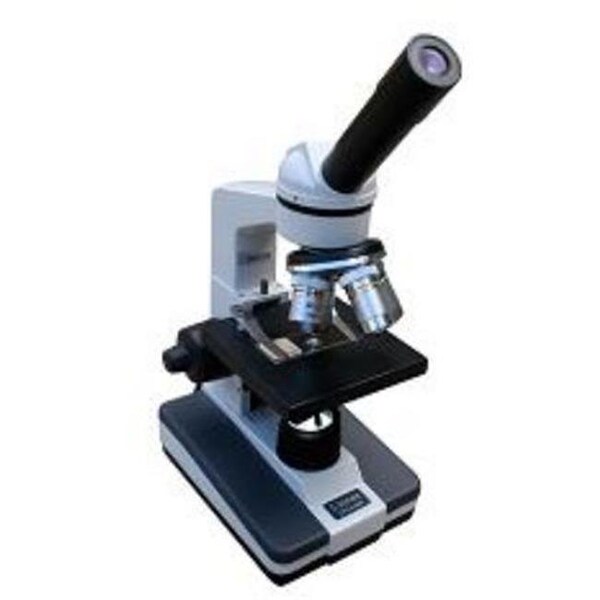

LW Scientific EDM-M03A-DALP Student Advanced - 3 Objectives - LED Illumination (Discontinued)

For the teacher that wants more than just the basic microscope for his classroom this advanced model is an excellent choice. The 1.25 ABBE condenser allows the addition of a100x oil immersion objective. The iris diaphragm allows precision adjustments to the cool fluorescent light.
Mode:l

Iris Diaphragm.

Optional 100x objective.

Coaxial Focus Knobs.
Head:

Standard monocular Head.

Bearing mounted, rotates 360°.

10X/18 wide field eyepiece.

Locked-in eyepiece with pointer installed.

Teaching Head available.
Construction:

Heavy cast alloy.

Acid and reagent resistant finish.

All metal gearing.
Objectives:

Four position Nosepiece.

DIN Achromatic 4X, 10X, 40XR (retractable).

Optional 100x oil objective.

Parfocal and parcentric.

Color coded.
Stage:

Pre-drilled and tapped for optional mechanical Stage.

Spring-loaded slide clips included.

Stage size: 110mm x 110mm.
Adjustment Controls:

Coaxial coarse and fine Focus.

Adjustable Stage stop.
Illumination

NA 1.25 ABBE condenser.

Iris Diaphragm.

5w fluorescent.

Input 110V (220V optional).

Optional Rechargeable LED base available.
Includes:

Blue and green filters.

Filter holder.

Dust cover.

Spare bulb and fuse.
Dimensions:

Height: 14".

Length: 7.0".

Width: 5.25".
