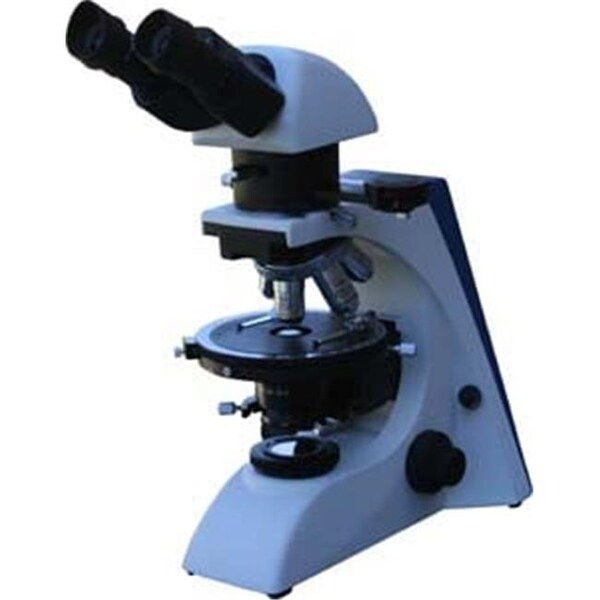

LW Scientific M5M-BPOL-IPH3 Mi5 Polarizing Binoc Scope - 5 Objective Infiinty Plan Binocular (Discontinued)

LW Scientific is proud to introduce the new Mi5 microscope, our most advanced modular microscope to date. The Mi5 was developed for use in a broad range of applications from routine research and lab inspections, to more specific healthcare applications such as pathology, cytology, oncology, hematology, and gynecology. Bright white LED Illumination provides clarity and maintains constant color temperature for most specimens. Superior infinity optics and proven, ergonomic design make the Mi5 comfortable to use for extended periods of time. The Mi5 is equipped to ease the burden on the busiest and most discriminating lab technicians and specialists.
Head:

Binocular (Seidentopf), Trinoc available.

Digital cameras and adapters available.

Diopter adjustment +/-5.

Inclined 30°.

10X/20X Super WF HP eyepieces.

Interpupillary distance range 50-75mm.
Nosepiece:

Reverse quintuple Nosepiece.

Multiple ball bearing mounted.
Objectives:

Infinity Plan Objectives.

4X, 10X, 20X, 40XR, 100XR (oil).

50X (oil) objective is also available.

Anti-fungal, parfocal, parcentric, color-coded.
Stage:

Mechanical Stage (135mm x 184mm).

Coaxial drive controls, metal rack and pinion.

Range of traverse: 73mm x 43mm.

Stage locking lever.

Slow-close hydraulic slide finger.
Focus:

Coarse adjustment: range of 22mm.

Fine adjustment: graduation of 2m.

Tension control knob.
Illumination:

Moveable Abbe condenser, NA 1.25 Iris Diaphram.

LED provides 10,000+ hours of light.

Variable light adjustment: 0-20W output.

90-240V / 50-60Hz automatic-switching power cord.

Medical-Grade Microscope.

Anti-Fungal Coating on All Lenses.

LED daylight Long Life Illumination and Consistent, Even Brightness.
Options:

Phase contrast, 50x oil objective, camera attachments, Darkfield, Epi-fluorescence.
Dimension:

Height: 15.6".

Length: 16.5".

Width: 8.1".
