  6. Collet Chck, CAT50,100TG, Pjct 3.500in DIN

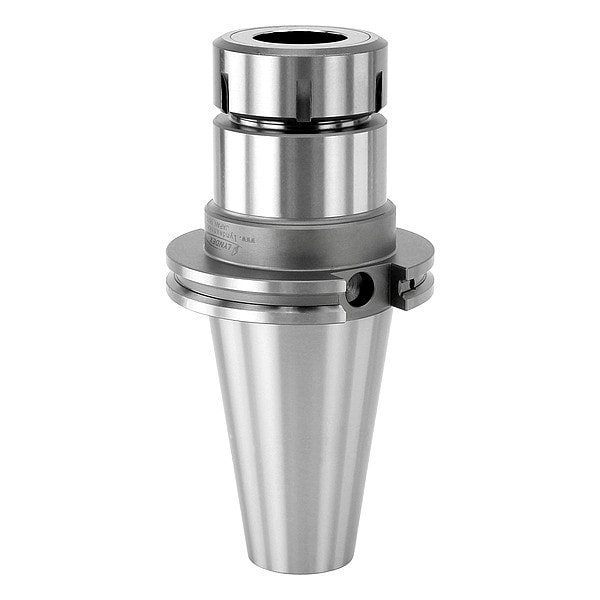

Lyndex-Nikken Collet Chck, CAT50,100TG, Pjct 3.500in DIN C5007-0040-4.00 - main

Collet Chck, CAT50,100TG, Pjct 3.500in DIN

  • Mfr # C5007-0040-4.00

  • Zoro # G0541978

product price:  $410.99
/ea
Free Shipping & Returns

Key Features

Collet Series
TG100
For Use With
ER Collets
Taper Size
CAT50
Coolant Through
Yes
Pre-Balanced
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C5007-0040-4.00
Zoro #
G0541978
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT50
Nut Dia.
2.500 in
Overall Length
8 in
Nose Dia.
2.4800 in
Nut Diameter
2.48 in
Compatible Collet Size - Maximum
1.02 in
Outside Diameter - Maximum
2.44 in
Compatible Collet Size - Minimum
0.12 in
Shank Thread Size
M50

Details

Item
Collet Chuck
Collet Series
TG100
For Use With
ER Collets
Coolant Through
Yes
Pre-Balanced
Yes
Material
Molybdenum
Min. Collet Capacity
0.1180 in
Balanceable
No
Projection
4 in
Max. Collet Capacity
1.023 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Finish
Nickel Chrome
Torque - Maximum
125 ft-lb
Compatible Collet Series
ER40
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Speed - Maximum
23,000 RPM
Compatible Nut Model Number
E40-NUT
Coolant Supply
Coolant Through
Product Type
CAT Collet Chuck
Includes Nut
Nut Included
Shank Type
Taper
Compatible Collet Wrench
040-SPAN

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.1180 in, Max. Collet Capacity 1.023 in, Projection 4 in, TG100
