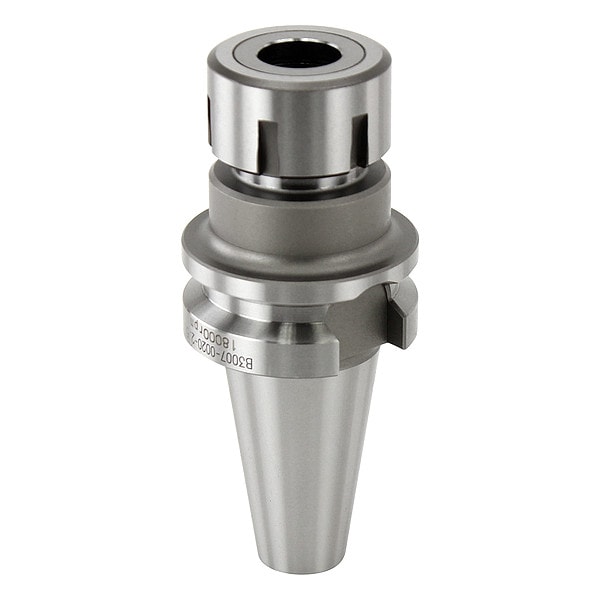

Lyndex-Nikken Collet Chuck, BT30, ER20, Project 2.500in B3007-0020-2.50 - main

Collet Chuck, BT30, ER20, Project 2.500in

  • Mfr # B3007-0020-2.50

  • Zoro # G0544260

product price: $239.50
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Taper Size
BT30
Coolant Through
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B3007-0020-2.50
Zoro #
G0544260
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
BT30
Nut Dia.
1.380 in
Overall Length
4 13/32 in
Nose Dia.
1.3800 in
Nut Diameter
1.38 in
Compatible Collet Size - Minimum
0.02 in
Shank Thread Size
M25
Compatible Collet Size - Maximum
0.51 in
Outside Diameter - Maximum
1.38 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Coolant Through
Yes
Material
Molybdenum
Max. Collet Capacity
0.511 in
Balanceable
No
Projection
2.5 in
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
T.I.R. Tolerance
0 in
Compatible Collet Series
ER20
Includes Coolant Screws
Coolant Screws Included
Torque - Maximum
59 ft-lb
Compatible Collet Wrench
020-SPAN
Product Type
BT Collet Chuck
Includes Nut
Nut Included
Speed - Maximum
23,000 RPM
Coolant Supply
Coolant Through
Finish
Nickel Chrome
Shank Type
Taper
Compatible Nut Model Number
E20-NUT

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 2.5 in, ER20
