Shop LYNDEX-NIKKEN

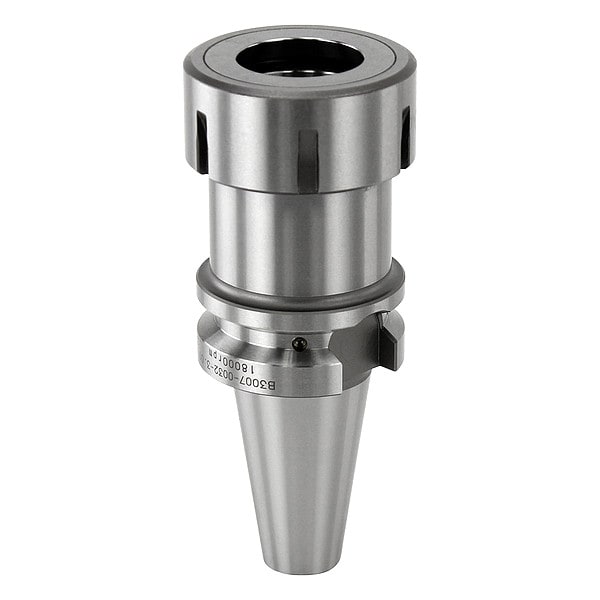

Collet Chuck, BT30, ER32, Project 3in

  • Mfr # B3007-0032-3.00
  • Zoro # G0544245

product price:
$
248.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
ER Collets
Nut Dia.
1.970 in
Coolant Through
Yes
Projection
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B3007-0032-3.00
Zoro #
G0544245
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Collet Chuck
Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Projection
3 in
Balanceable
No
Pre-Balanced
Yes
Min. Collet Capacity
0.0780 in
Material
Molybdenum
Max. Collet Capacity
0.787 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Finish
Nickel Chrome
Compatible Collet Series
ER32
Compatible Collet Wrench
032-SPAN
Compatible Nut Model Number
E32-NUT
Speed - Maximum
23,000 RPM
Coolant Supply
Coolant Through
T.I.R. Tolerance
0 in
Includes Nut
Nut Included
Torque - Maximum
100 ft-lb
Includes Coolant Screws
Coolant Screws Included
Product Type
BT Collet Chuck
Shank Type
Taper
Shell Material
Molybdenum
Traction Material
Molybdenum

Dimensions

Nut Dia.
1.970 in
Taper Size
BT30
Overall Length
4 29/32 in
Nose Dia.
1.9700 in
Shank Thread Size
M40
Outside Diameter - Maximum
1.97 in
Compatible Collet Size - Minimum
0.08 in
Compatible Collet Size - Maximum
0.79 in
Nut Diameter
1.97 in
Wire Rope Length
4 29/32 in
Length
4 29/32 in

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0780 in, Max. Collet Capacity 0.787 in, Projection 3 in, ER32
