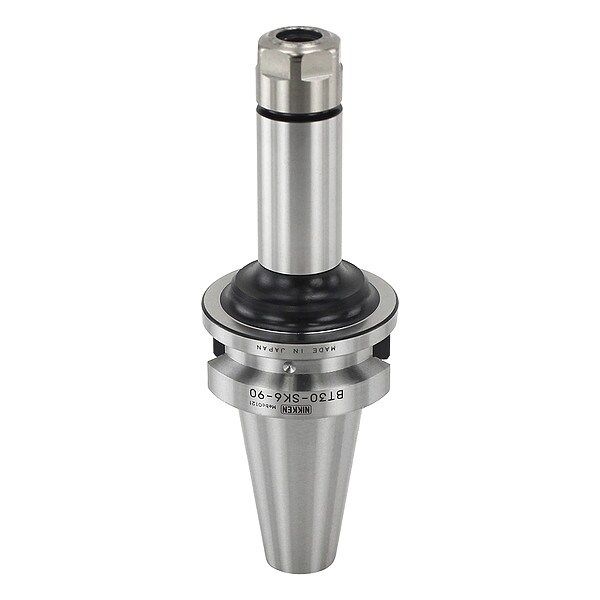

Lyndex-Nikken Collet Chuck, BT30, SeriesSK6-90 BT30-SK6-90 - main

Collet Chuck, BT30, SeriesSK6-90

  • Mfr # BT30-SK6-90

  • Zoro # G0543369

product price: $394.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK6
For Use With
SK Collets
Min. Collet Capacity
0.0280 in
Max. Collet Capacity
0.236 in
Nut Dia.
0.768 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT30-SK6-90
Zoro #
G0543369
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
0.768 in
Taper Size
BT30
Overall Length
5 7/16 in
Nose Dia.
0.7680 in
Nut Diameter
0.77 in
Outside Diameter - Maximum
0.77 in
Compatible Collet Size - Minimum
0.03 in
Compatible Collet Size - Maximum
0.25 in

Details

Item
Collet Chuck
Collet Series
SK6
For Use With
SK Collets
Min. Collet Capacity
0.0280 in
Max. Collet Capacity
0.236 in
Balanceable
No
Material
High Speed Steel
Projection
3.54 in
Pre-Balanced
Yes
Coolant Through
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Compatible Collet Series
SK6
Torque - Maximum
22 ft-lb
Shank Type
Taper
T.I.R. Tolerance
0 in
Finish
Heat Treated
Speed - Maximum
15,000 RPM
Compatible Collet Wrench
SKL-6W
Includes Nut
Nut Included
Includes Coolant Screws
Coolant Screws Not Included
Coolant Supply
Coolant Through
Product Type
BT Collet Chuck
Operating Pressure - Maximum
1,200 psi

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0280 in, Max. Collet Capacity 0.236 in, Projection 3.54 in, SK6
