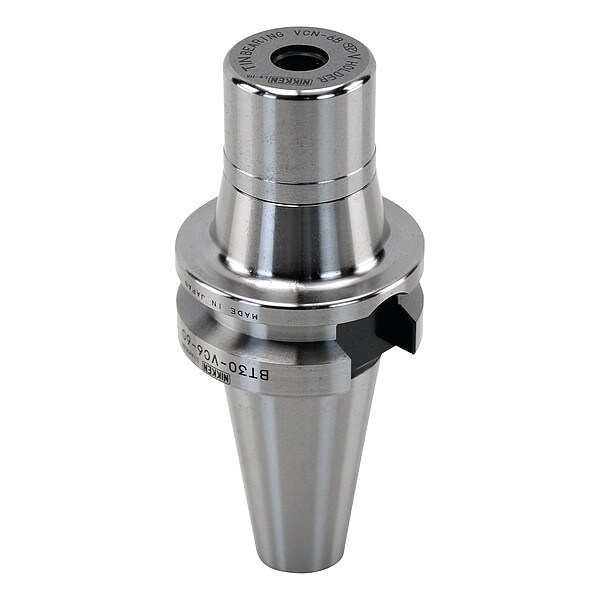

Collet Chuck, BT30, SeriesVC6, Project 60mm

  • Mfr # BT30-VC6-60
  • Zoro # G0543308
product price:
$
549.99
/ea
Free Shipping & Returns

Key Features

Collet Series
VC6
For Use With
VC Collets
Nut Dia.
1.083 in
Projection
2.36 in
Max. Collet Capacity
0.236 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BT30-VC6-60
Zoro #
G0543308
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.083 in
Taper Size
BT30
Overall Length
4 17/64 in
Nose Dia.
1.0830 in
Outside Diameter - Maximum
1.08 in
Compatible Collet Size - Minimum
0.08 in
Nut Diameter
1.08 in
Compatible Collet Size - Maximum
0.25 in
Wire Rope Length
4 17/64 in
Length
4 17/64 in

Details

Item
Collet Chuck
Collet Series
VC6
For Use With
VC Collets
Projection
2.36 in
Max. Collet Capacity
0.236 in
Min. Collet Capacity
0.0790 in
Coolant Through
Yes
Material
High Speed Steel
Balanceable
No
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Torque - Maximum
37 ft-lb
Includes Nut
Nut Included
Compatible Collet Wrench
GH10
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Compatible Collet Series
VC6
Shank Type
Taper
Speed - Maximum
40,000 RPM
Product Type
BT Collet Chuck
Balance Rating
G2.5
Coolant Supply
Coolant Through
Shell Material
High Speed Steel

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0790 in, Max. Collet Capacity 0.236 in, Projection 2.36 in, VC6
