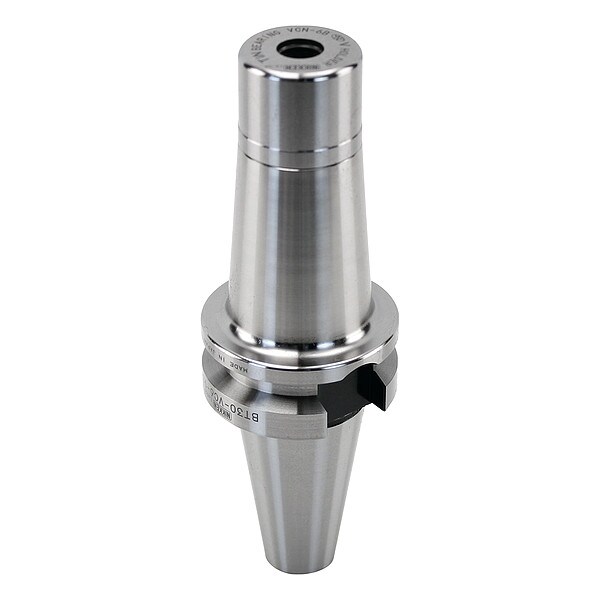

Lyndex-Nikken Collet Chuck, BT30, SeriesVC6, Project 90mm BT30-VC6-90 - main

Collet Chuck, BT30, SeriesVC6, Project 90mm

  • Mfr # BT30-VC6-90

  • Zoro # G0543299

product price: $538.99
/ea
Free Shipping & Returns

Key Features

Collet Series
VC6
For Use With
VC Collets
Min. Collet Capacity
0.0790 in
Max. Collet Capacity
0.236 in
Nut Dia.
1.083 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT30-VC6-90
Zoro #
G0543299
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.083 in
Taper Size
BT30
Overall Length
5 29/64 in
Nose Dia.
1.0830 in
Compatible Collet Size - Maximum
0.25 in
Compatible Collet Size - Minimum
0.08 in
Nut Diameter
1.08 in
Outside Diameter - Maximum
1.08 in

Details

Item
Collet Chuck
Collet Series
VC6
For Use With
VC Collets
Min. Collet Capacity
0.0790 in
Max. Collet Capacity
0.236 in
Pre-Balanced
Yes
Balanceable
No
Coolant Through
Yes
Material
High Speed Steel
Projection
3.54 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Includes Nut
Nut Included
Torque - Maximum
37 ft-lb
Balance Rating
G2.5
Coolant Supply
Coolant Through
Compatible Collet Wrench
GH10
Shank Type
Taper
Speed - Maximum
40,000 RPM
Product Type
BT Collet Chuck
T.I.R. Tolerance
0 in
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
VC6

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0790 in, Max. Collet Capacity 0.236 in, Projection 3.54 in, VC6
