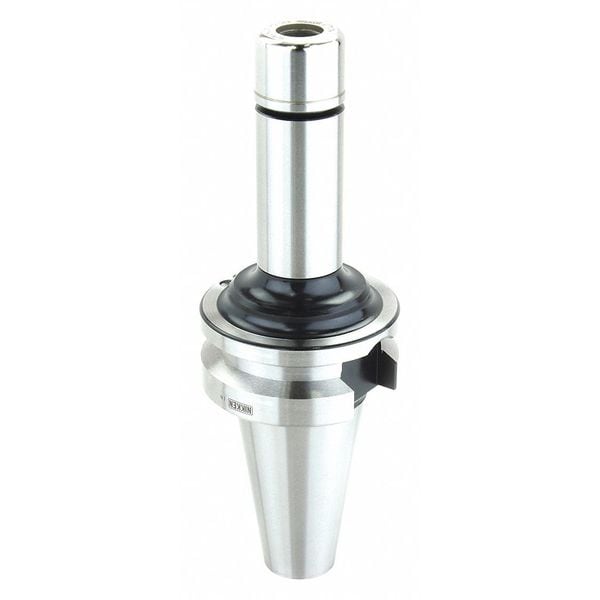

Lyndex-Nikken Collet Chuck, BT30, SK10 BT30-SK10-90P - main

Collet Chuck, BT30, SK10

  • Mfr # BT30-SK10-90P

  • Zoro # G0543439

product price: $463.48
/ea
Free Shipping & Returns

Key Features

Collet Series
SK10
For Use With
SK Collets
Max. Collet Capacity
0.393 in
Pre-Balanced
Yes
Balanceable
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT30-SK10-90P
Zoro #
G0543439
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
BT30
Nut Dia.
1.083 in
Overall Length
5 7/16 in
Nose Dia.
1.0830 in
Compatible Collet Size - Minimum
0.04 in
Compatible Collet Size - Maximum
0.39 in
Nut Diameter
1.08 in
Outside Diameter - Maximum
1.08 in

Details

Item
Collet Chuck
Collet Series
SK10
For Use With
SK Collets
Max. Collet Capacity
0.393 in
Pre-Balanced
Yes
Balanceable
No
Min. Collet Capacity
0.0690 in
Material
High Speed Steel
Projection
3.54 in
Coolant Through
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Product Type
BT Collet Chuck
Operating Pressure - Maximum
1,200 psi
Finish
Heat Treated
Coolant Supply
Coolant Through
Includes Nut
Nut Included
Torque - Maximum
41 ft-lb
T.I.R. Tolerance
0 in
Shank Type
Taper
Compatible Collet Series
SK10
Includes Coolant Screws
Coolant Screws Not Included
Compatible Collet Wrench
GH10
Balance Rating
G2.5
Speed - Maximum
30,000 RPM

Description

Collet Chuck, Taper Size BT30, Min. Collet Capacity 0.0690 in, Max. Collet Capacity 0.393 in, Projection 3.54 in, SK10
