  11. Collet Chuck, BT40,180DA, Project 4in

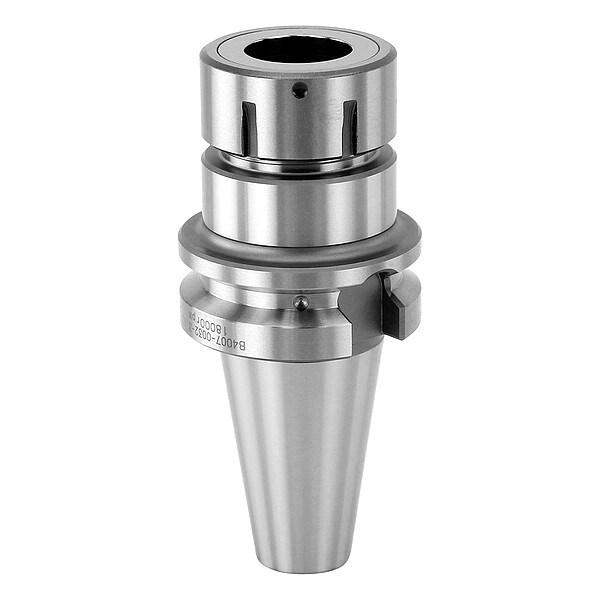

Lyndex-Nikken Collet Chuck, BT40,180DA, Project 4in B4007-0032-3.13 - main

Collet Chuck, BT40,180DA, Project 4in

  • Mfr # B4007-0032-3.13

  • Zoro # G0543956

product price: $286.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Balanceable
No
Min. Collet Capacity
0.0780 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B4007-0032-3.13
Zoro #
G0543956
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.970 in
Taper Size
BT40
Overall Length
5 45/64 in
Nose Dia.
1.9700 in
Nut Diameter
1.97 in
Compatible Collet Size - Maximum
0.79 in
Shank Thread Size
M40
Compatible Collet Size - Minimum
0.08 in
Outside Diameter - Maximum
1.97 in

Details

Item
Collet Chuck
Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Balanceable
No
Min. Collet Capacity
0.0780 in
Max. Collet Capacity
0.787 in
Material
Molybdenum
Pre-Balanced
Yes
Projection
3.15 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Coolant Supply
Coolant Through
Includes Nut
Nut Included
Finish
Nickel Chrome
Speed - Maximum
23,000 RPM
Product Type
BT Collet Chuck
Shank Type
Taper
Number of Coolant Ports
2
Compatible Nut Model Number
E32-NUT
Compatible Collet Wrench
032-SPAN
Torque - Maximum
100 ft-lb
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Compatible Collet Series
ER32

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.0780 in, Max. Collet Capacity 0.787 in, Projection 3.15 in, ER32
