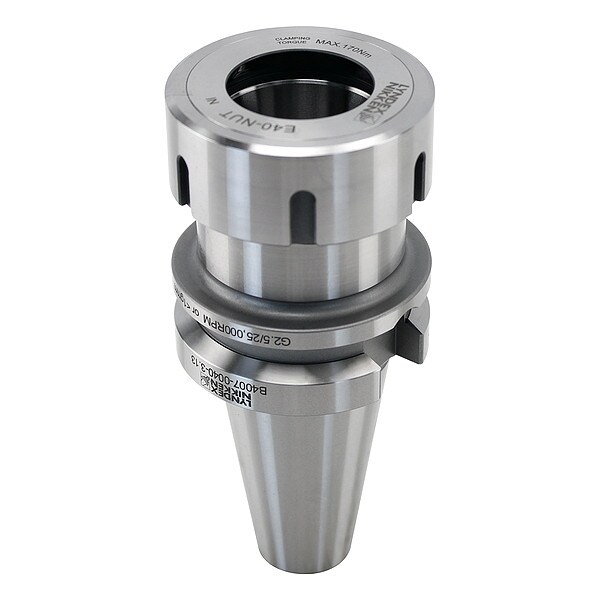

Lyndex-Nikken Collet Chuck, BT40,200DA, Project 3in B4007-0040-3.13 - main

Collet Chuck, BT40,200DA, Project 3in

  • Mfr # B4007-0040-3.13

  • Zoro # G0543947

product price: $340.99
/ea
Free Shipping & Returns

Key Features

Collet Series
DA200
For Use With
ER Collets
Material
Molybdenum
Coolant Through
Yes
Pre-Balanced
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B4007-0040-3.13
Zoro #
G0543947
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
2.500 in
Taper Size
BT40
Overall Length
5 45/64 in
Nose Dia.
2 1/2 in
Compatible Collet Size - Maximum
1.02 in
Nut Diameter
2.5 in
Compatible Collet Size - Minimum
0.12 in
Outside Diameter - Maximum
2.44 in
Shank Thread Size
M50

Details

Item
Collet Chuck
Collet Series
DA200
For Use With
ER Collets
Material
Molybdenum
Coolant Through
Yes
Pre-Balanced
Yes
Max. Collet Capacity
1.023 in
Balanceable
No
Projection
3.15 in
Min. Collet Capacity
0.1180 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Product Type
BT Collet Chuck
Torque - Maximum
125 ft-lb
Coolant Supply
Coolant Through
Finish
Nickel Chrome
T.I.R. Tolerance
0 in
Number of Coolant Ports
2
Compatible Collet Series
ER40
Speed - Maximum
23,000 RPM
Shank Type
Taper
Includes Nut
Nut Included
Includes Coolant Screws
Coolant Screws Included
Compatible Nut Model Number
E40-NUT
Compatible Collet Wrench
040-SPAN

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.1180 in, Max. Collet Capacity 1.023 in, Projection 3.15 in, DA200
