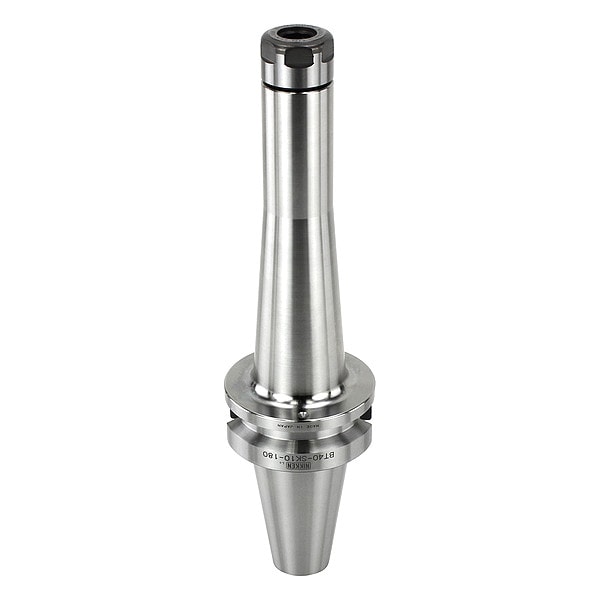

Lyndex-Nikken Collet Chuck, BT40, SK10, Project 180mm BT40-SK10-180 - main

Collet Chuck, BT40, SK10, Project 180mm

  • Mfr # BT40-SK10-180

  • Zoro # G0543089

product price: $549.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK10
For Use With
SK Collets
Material
High Speed Steel
Max. Collet Capacity
0.393 in
Coolant Through
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT40-SK10-180
Zoro #
G0543089
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
BT40
Nut Dia.
1.083 in
Overall Length
9 21/32 in
Nose Dia.
1.0830 in
Nut Diameter
1.08 in
Outside Diameter - Maximum
1.08 in
Compatible Collet Size - Maximum
0.39 in
Compatible Collet Size - Minimum
0.04 in

Details

Item
Collet Chuck
Collet Series
SK10
For Use With
SK Collets
Material
High Speed Steel
Max. Collet Capacity
0.393 in
Coolant Through
Yes
Balanceable
No
Min. Collet Capacity
0.0690 in
Projection
7.09 in
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Product Type
BT Collet Chuck
Compatible Collet Wrench
SKL-10
T.I.R. Tolerance
0 in
Shank Type
Taper
Coolant Supply
Coolant Through
Number of Coolant Ports
2
Compatible Backup Screw Model Number
SKG-12L
Torque - Maximum
41 ft-lb
Speed - Maximum
10,000 RPM
Includes Nut
Nut Included
Includes Coolant Screws
Coolant Screws Not Included
Compatible Collet Series
SK10
Operating Pressure - Maximum
1,200 psi
Finish
Heat Treated

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.0690 in, Max. Collet Capacity 0.393 in, Projection 7.09 in, SK10
