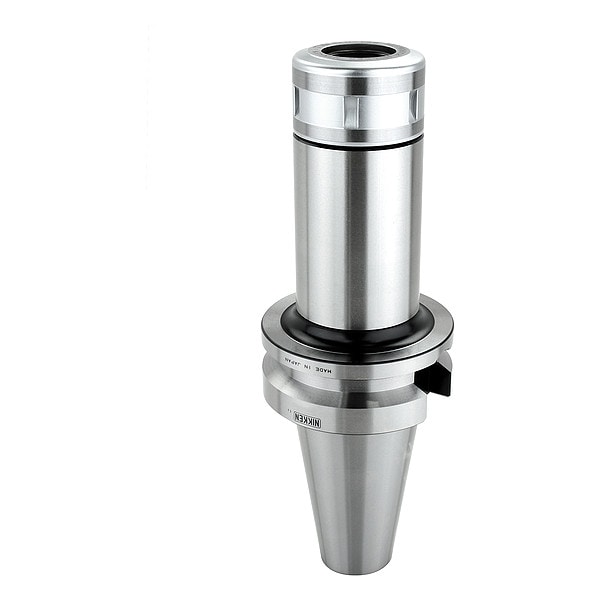

Lyndex-Nikken Collet Chuck, BT40, SK16, Project 180mm BT40-SK16-180 - main

Collet Chuck, BT40, SK16, Project 180mm

  • Mfr # BT40-SK16-180

  • Zoro # G0543019

product price: $583.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK16
For Use With
SK Collets
Max. Collet Capacity
0.629 in
Projection
7.09 in
Taper Size
BT40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT40-SK16-180
Zoro #
G0543019
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
BT40
Nut Dia.
1.575 in
Overall Length
9 21/32 in
Nose Dia.
1.5750 in
Outside Diameter - Maximum
1.58 in
Compatible Collet Size - Maximum
0.63 in
Nut Diameter
1.58 in
Compatible Collet Size - Minimum
0.11 in

Details

Item
Collet Chuck
Collet Series
SK16
For Use With
SK Collets
Max. Collet Capacity
0.629 in
Projection
7.09 in
Material
High Speed Steel
Balanceable
No
Pre-Balanced
Yes
Min. Collet Capacity
0.1080 in
Coolant Through
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Coolant Supply
Coolant Through
Compatible Backup Screw Model Number
SKG-18L
Compatible Collet Series
SK16
Finish
Heat Treated
Torque - Maximum
55 ft-lb
Number of Coolant Ports
2
Includes Nut
Nut Included
Speed - Maximum
10,000 RPM
Product Type
BT Collet Chuck
T.I.R. Tolerance
0 in
Operating Pressure - Maximum
1,200 psi
Compatible Collet Wrench
9HC16
Shank Type
Taper
Includes Coolant Screws
Coolant Screws Not Included

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.1080 in, Max. Collet Capacity 0.629 in, Projection 7.09 in, SK16
