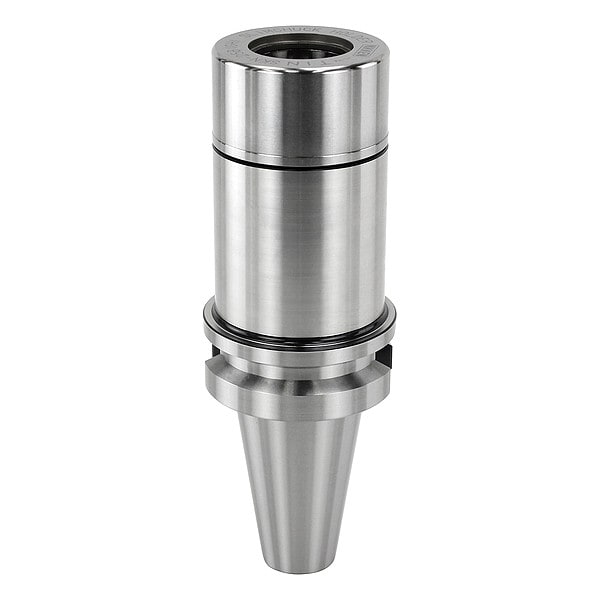

Lyndex-Nikken Collet Chuck, BT40, SK25-120P BT40-SK25-120P - main

Collet Chuck, BT40, SK25-120P

  • Mfr # BT40-SK25-120P

  • Zoro # G0542967

product price: $668.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK25
For Use With
SK Collets
Projection
4.72 in
Balanceable
No
Min. Collet Capacity
0.6100 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT40-SK25-120P
Zoro #
G0542967
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
2.165 in
Taper Size
BT40
Overall Length
7 19/64 in
Nose Dia.
2.1650 in
Nut Diameter
2.17 in
Outside Diameter - Maximum
2.17 in
Compatible Collet Size - Minimum
0.19 in
Compatible Collet Size - Maximum
1 in

Details

Item
Collet Chuck
Collet Series
SK25
For Use With
SK Collets
Projection
4.72 in
Balanceable
No
Min. Collet Capacity
0.6100 in
Max. Collet Capacity
1.000 in
Coolant Through
Yes
Material
High Speed Steel
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Speed - Maximum
20,000 RPM
Includes Coolant Screws
Coolant Screws Not Included
Compatible Collet Series
SK25
Torque - Maximum
63 ft-lb
Includes Nut
Nut Included
Finish
Heat Treated
Shank Type
Taper
Number of Coolant Ports
2
Operating Pressure - Maximum
1,200 psi
Coolant Supply
Coolant Through
T.I.R. Tolerance
0 in
Product Type
BT Collet Chuck
Balance Rating
G2.5
Compatible Backup Screw Model Number
SKG-28
Compatible Collet Wrench
GH25

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.6100 in, Max. Collet Capacity 1.000 in, Projection 4.72 in, SK25
