  11. Collet Chuck, BT40, SK25, Project 90mm

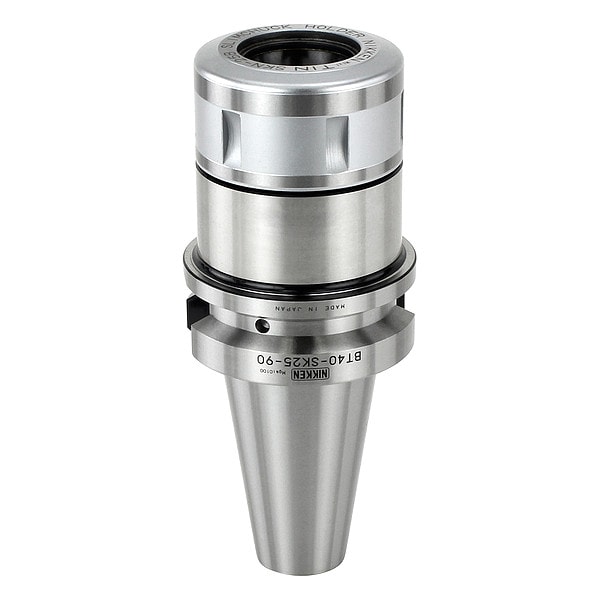

Lyndex-Nikken Collet Chuck, BT40, SK25, Project 90mm BT40-SK25-90 - main

Collet Chuck, BT40, SK25, Project 90mm

  • Mfr # BT40-SK25-90

  • Zoro # G0542949

product price: $519.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK25
For Use With
SK Collets
Nut Dia.
2.165 in
Coolant Through
Yes
Projection
3.54 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT40-SK25-90
Zoro #
G0542949
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
2.165 in
Taper Size
BT40
Overall Length
6 7/64 in
Nose Dia.
2.1650 in
Outside Diameter - Maximum
2.17 in
Compatible Collet Size - Maximum
1 in
Nut Diameter
2.17 in
Compatible Collet Size - Minimum
0.19 in

Details

Item
Collet Chuck
Collet Series
SK25
For Use With
SK Collets
Coolant Through
Yes
Projection
3.54 in
Material
High Speed Steel
Max. Collet Capacity
1.000 in
Pre-Balanced
Yes
Min. Collet Capacity
0.6100 in
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Includes Coolant Screws
Coolant Screws Not Included
Coolant Supply
Coolant Through
Speed - Maximum
15,000 RPM
Compatible Collet Wrench
9HC22
Torque - Maximum
63 ft-lb
Compatible Backup Screw Model Number
SKG-28
Shank Type
Taper
Operating Pressure - Maximum
1,200 psi
Includes Nut
Nut Included
T.I.R. Tolerance
0 in
Product Type
BT Collet Chuck
Finish
Heat Treated
Compatible Collet Series
SK25
Number of Coolant Ports
2

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.6100 in, Max. Collet Capacity 1.000 in, Projection 3.54 in, SK25
