  11. Collet Chuck, BT50,100TG, Project 5.500in
This item is Discontinued.

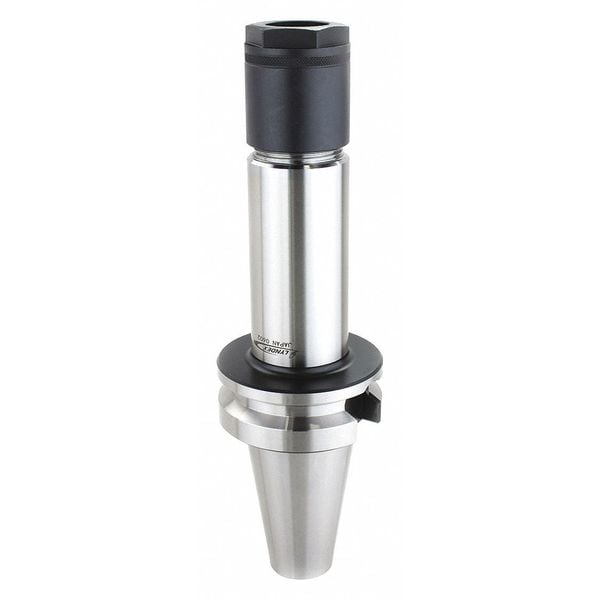

Lyndex-Nikken Collet Chuck, BT50,100TG, Project 5.500in B5017-0180-6.00

Collet Chuck, BT50,100TG, Project 5.500in (Discontinued)

  • Mfr # B5017-0180-6.00
  • Zoro # G0543588
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B5017-0180-6.00
Zoro #
G0543588
UPC #
-
Country of Origin
India

Dimensions

Nut Dia.
1.440 in
Taper Size
BT50
Overall Length
10 1/64 in
Nose Dia.
1.4400 in
Nut Diameter
1.44 in
Compatible Collet Size - Minimum
0.05 in

Details

Item
Collet Chuck
Collet Series
DA180
For Use With
DA Collets
Balanceable
No
Min. Collet Capacity
0.0470 in
Max. Collet Capacity
0.750 in
Pre-Balanced
Yes
Projection
6 in
Coolant Through
Yes
Material
Molybdenum
Coolant Fed
Coolant Through
Features
Pre-Balanced
Coolant Supply
Non-Coolant Through
Includes Nut
Nut Included
Shank Type
Taper
Product Type
BT Collet Chuck
Finish
Nickel Chrome
Number of Coolant Ports
0
Speed - Maximum
10,000 RPM
Compatible Collet Series
DA180

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.0470 in, Max. Collet Capacity 0.750 in, Projection 6 in, DA180
