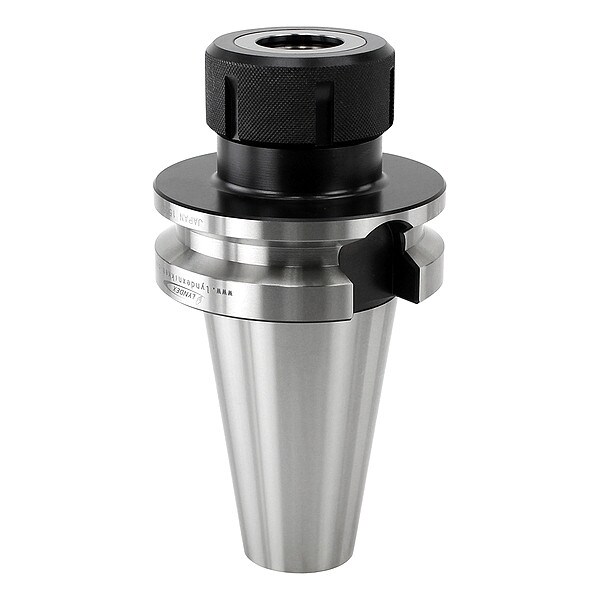

Lyndex-Nikken Collet Chuck, BT50, ER20, Project 4in B5007-1000-3.50 - main

Collet Chuck, BT50, ER20, Project 4in

  • Mfr # B5007-1000-3.50

  • Zoro # G0543649

product price: $365.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0470 in
Material
Molybdenum
Nut Dia.
1.380 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B5007-1000-3.50
Zoro #
G0543649
UPC #
-
Country of Origin
India

Dimensions

Nut Dia.
1.380 in
Taper Size
BT50
Overall Length
7 33/64 in
Nose Dia.
2 1/2 in
Shank Thread Size
1.875 in
Compatible Collet Size - Minimum
0.05 in
Compatible Collet Size - Maximum
1 in
Nut Diameter
2.5 in
Outside Diameter - Maximum
2.5 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0470 in
Material
Molybdenum
Coolant Through
Yes
Projection
3.5 in
Max. Collet Capacity
1.000 in
Balanceable
No
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Product Type
BT Collet Chuck
Shank Type
Taper
T.I.R. Tolerance
0 in
Number of Coolant Ports
4
Coolant Supply
Coolant Through
Speed - Maximum
10,000 RPM
Compatible Collet Series
TG100
Finish
Nickel Chrome
Compatible Collet Wrench
100TG-SPAN
Includes Coolant Screws
Coolant Screws Included
Includes Nut
Nut Included

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.0470 in, Max. Collet Capacity 1.000 in, Projection 3.5 in, ER20
