  11. Collet Chuck, BT50, ER32, Project 4in
Lyndex-Nikken Collet Chuck, BT50, ER32, Project 4in B5007-0020-2.75 - main

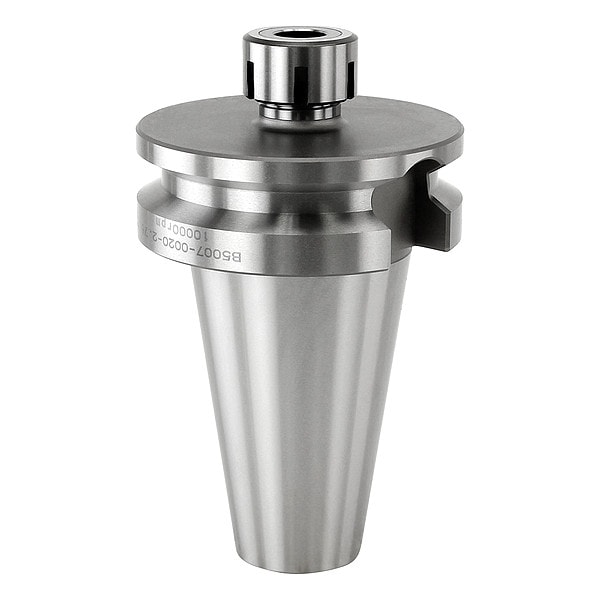

Collet Chuck, BT50, ER32, Project 4in

  • Mfr # B5007-0020-2.75

  • Zoro # G0543691

product price: $372.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Pre-Balanced
Yes
Min. Collet Capacity
0.0390 in
Taper Size
BT50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B5007-0020-2.75
Zoro #
G0543691
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
BT50
Nut Dia.
1.380 in
Overall Length
6 49/64 in
Nose Dia.
1.3800 in
Nut Diameter
1.38 in
Outside Diameter - Maximum
1.38 in
Compatible Collet Size - Minimum
0.02 in
Shank Thread Size
M25
Compatible Collet Size - Maximum
0.51 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Pre-Balanced
Yes
Min. Collet Capacity
0.0390 in
Projection
2.76 in
Balanceable
No
Coolant Through
Yes
Max. Collet Capacity
0.511 in
Material
Molybdenum
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Torque - Maximum
59 ft-lb
Product Type
BT Collet Chuck
Compatible Nut Model Number
E20-NUT
Includes Coolant Screws
Coolant Screws Included
Coolant Supply
Coolant Through
Shank Type
Taper
Compatible Collet Wrench
020-SPAN
Includes Nut
Nut Included
Finish
Nickel Chrome
T.I.R. Tolerance
0 in
Speed - Maximum
23,000 RPM
Number of Coolant Ports
4
Compatible Collet Series
ER20

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 2.76 in, ER20
