This item is Discontinued.

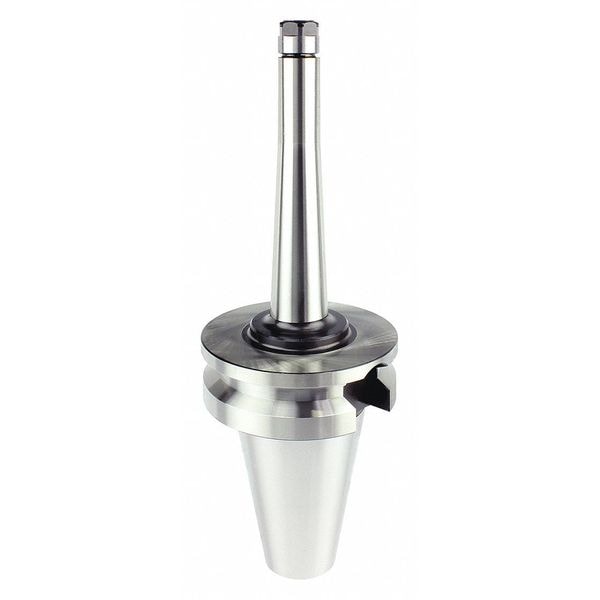

Lyndex-Nikken Collet Chuck, BT50, SK6, Project 105mm BT50-SK6-105

Collet Chuck, BT50, SK6, Project 105mm (Discontinued)

  • Mfr # BT50-SK6-105
  • Zoro # G0542669
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BT50-SK6-105
Zoro #
G0542669
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
BT50
Nut Dia.
0.768 in
Overall Length
8 9/64 in
Nose Dia.
0.7680 in
Compatible Collet Size - Maximum
0.24 in
Nut Diameter
0.77 in
Compatible Collet Size - Minimum
0.03 in

Details

Item
Collet Chuck
Collet Series
SK6
For Use With
SK Collets
Max. Collet Capacity
0.236 in
Pre-Balanced
Yes
Min. Collet Capacity
0.0280 in
Projection
4.13 in
Coolant Through
Yes
Material
High Speed Steel
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Compatible Collet Series
SK6
Includes Nut
Nut Included
Coolant Supply
Coolant Through
Product Type
BT Collet Chuck
Compatible Collet Wrench
SKL-6W
Shank Type
Taper
Operating Pressure - Maximum
1,200 psi
Finish
Heat Treated
T.I.R. Tolerance
0 in
Speed - Maximum
30,000 RPM
Includes Coolant Screws
Coolant Screws Not Included

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.0280 in, Max. Collet Capacity 0.236 in, Projection 4.13 in, SK6
