Lyndex-Nikken Collet Chuck, CAT40, ER16, Project 3.500in C4007-0016-3.50 - main

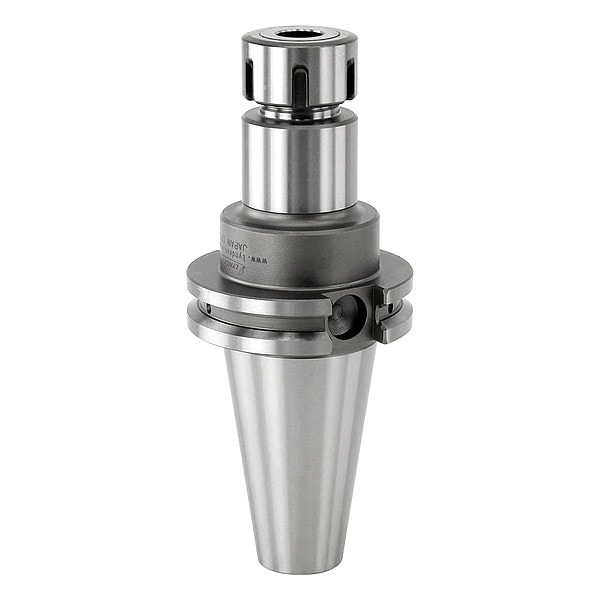

Collet Chuck, CAT40, ER16, Project 3.500in

  • Mfr # C4007-0016-3.50

  • Zoro # G0542529

product price: $294.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER16
For Use With
ER Collets
Pre-Balanced
Yes
Balanceable
No
Max. Collet Capacity
0.406 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C4007-0016-3.50
Zoro #
G0542529
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT40
Nut Dia.
1.260 in
Overall Length
6 3/16 in
Nose Dia.
1.2600 in
Outside Diameter - Maximum
1.26 in
Compatible Collet Size - Minimum
0.02 in
Nut Diameter
1.26 in
Shank Thread Size
M22
Compatible Collet Size - Maximum
0.39 in

Details

Item
Collet Chuck
Collet Series
ER16
For Use With
ER Collets
Pre-Balanced
Yes
Balanceable
No
Max. Collet Capacity
0.406 in
Coolant Through
Yes
Material
Molybdenum
Min. Collet Capacity
0.0190 in
Projection
3.5 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Finish
Nickel Chrome
Compatible Nut Model Number
E16-NUT
Product Type
CAT Collet Chuck
Includes Nut
Nut Included
Number of Coolant Ports
2
T.I.R. Tolerance
0 in
Torque - Maximum
40 ft-lb
Compatible Collet Wrench
016-SPAN
Coolant Supply
Coolant Through
Speed - Maximum
23,000 RPM
Compatible Collet Series
ER16
Shank Type
Taper
Includes Coolant Screws
Coolant Screws Included

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.406 in, Projection 3.5 in, ER16
