  11. Collet Chuck, CAT40, ER20, Project 2.500in

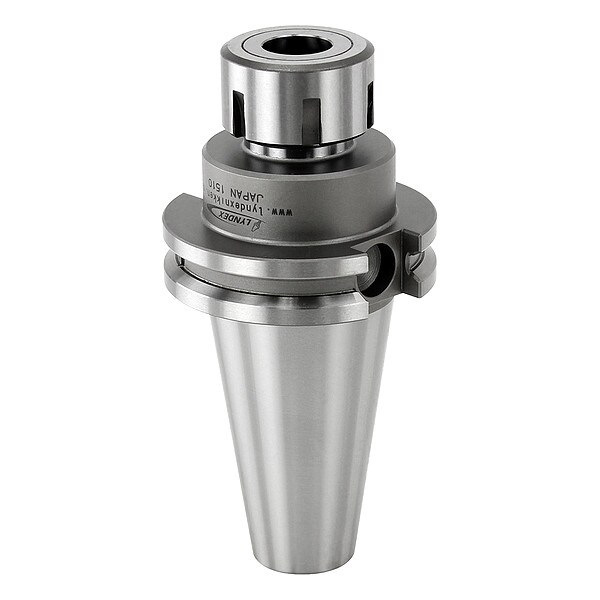

Lyndex-Nikken Collet Chuck, CAT40, ER20, Project 2.500in C4007-0020-2.50 - main

Collet Chuck, CAT40, ER20, Project 2.500in

  • Mfr # C4007-0020-2.50

  • Zoro # G0542501

product price: $266.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Nut Dia.
1.380 in
Max. Collet Capacity
0.511 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C4007-0020-2.50
Zoro #
G0542501
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.380 in
Taper Size
CAT40
Overall Length
5 3/16 in
Nose Dia.
1.3800 in
Compatible Collet Size - Minimum
0.02 in
Compatible Collet Size - Maximum
0.51 in
Shank Thread Size
M25
Nut Diameter
1.38 in
Outside Diameter - Maximum
1.38 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Max. Collet Capacity
0.511 in
Pre-Balanced
Yes
Balanceable
No
Coolant Through
Yes
Material
Molybdenum
Projection
2.5 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Compatible Nut Model Number
E20-NUT
Speed - Maximum
23,000 RPM
Compatible Collet Series
ER20
Torque - Maximum
59 ft-lb
Includes Nut
Nut Included
Product Type
CAT Collet Chuck
Coolant Supply
Coolant Through
Number of Coolant Ports
4
Compatible Collet Wrench
020-SPAN
Shank Type
Taper
T.I.R. Tolerance
0 in
Finish
Nickel Chrome
Includes Coolant Screws
Coolant Screws Included

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 2.5 in, ER20
