Shop LYNDEX-NIKKEN

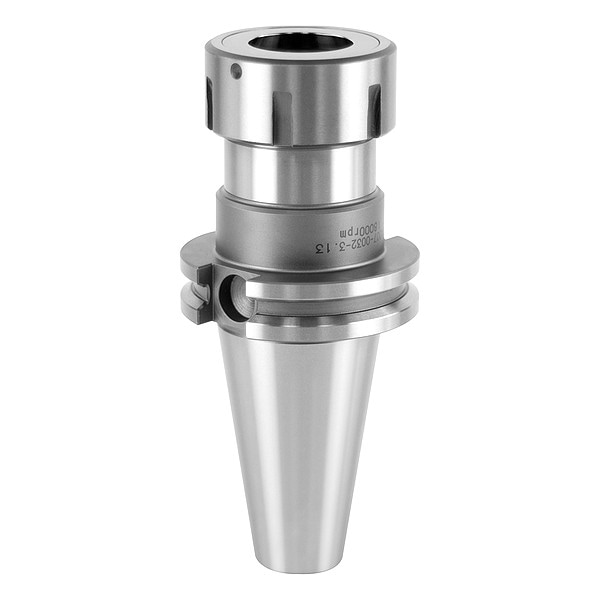

Collet Chuck, CAT40, ER32, Project 3.130in

  • Mfr # C4007-0032-3.13

  • Zoro # G0542477

product price:  $268.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
ER Collets
Nut Dia.
1.970 in
Coolant Through
Yes
Material
Molybdenum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C4007-0032-3.13
Zoro #
G0542477
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.970 in
Taper Size
CAT40
Overall Length
5 13/16 in
Nose Dia.
1.9700 in
Nut Diameter
1.97 in
Outside Diameter - Maximum
1.97 in
Shank Thread Size
M40
Compatible Collet Size - Maximum
0.79 in
Compatible Collet Size - Minimum
0.08 in
Wire Rope Length
5 13/16 in

Details

Item
Collet Chuck
Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Material
Molybdenum
Max. Collet Capacity
0.787 in
Projection
3.15 in
Balanceable
No
Pre-Balanced
Yes
Min. Collet Capacity
0.0780 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Coolant Supply
Coolant Through
Shank Type
Taper
Speed - Maximum
23,000 RPM
Torque - Maximum
100 ft-lb
T.I.R. Tolerance
0 in
Compatible Collet Wrench
032-SPAN
Product Type
CAT Collet Chuck
Compatible Collet Series
ER32
Includes Nut
Nut Included
Number of Coolant Ports
2
Finish
Nickel Chrome
Compatible Nut Model Number
E32-NUT
Includes Coolant Screws
Coolant Screws Included

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.0780 in, Max. Collet Capacity 0.787 in, Projection 3.15 in, ER32
