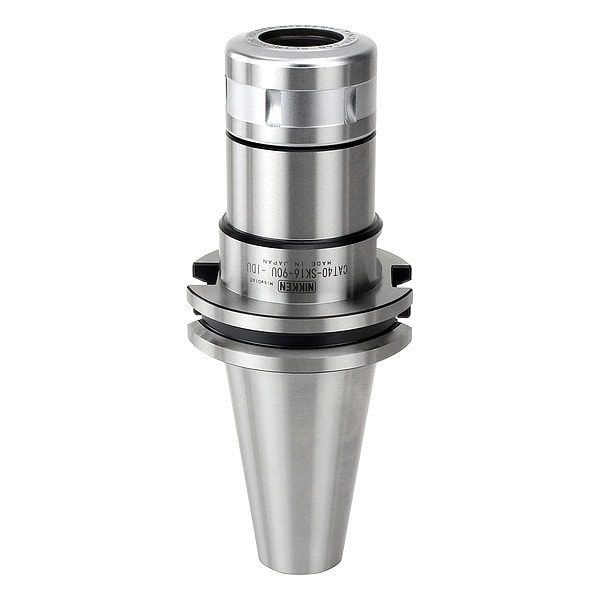

Lyndex-Nikken Collet Chuck, CAT40, SK6, Project 120mm CAT40-SK16-90U - main

Collet Chuck, CAT40, SK6, Project 120mm

  • Mfr # CAT40-SK16-90U

  • Zoro # G0541208

product price: $481.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK16
For Use With
SK Collets
Nut Dia.
1.575 in
Material
High Speed Steel
Pre-Balanced
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CAT40-SK16-90U
Zoro #
G0541208
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.575 in
Taper Size
CAT40
Nose Dia.
1.5750 in
Nut Diameter
1.58 in
Outside Diameter - Maximum
1.58 in
Compatible Collet Size - Minimum
0.11 in
Compatible Collet Size - Maximum
0.63 in

Details

Item
Collet Chuck
Collet Series
SK16
For Use With
SK Collets
Material
High Speed Steel
Pre-Balanced
Yes
Max. Collet Capacity
0.629 in
Coolant Through
Yes
Min. Collet Capacity
0.1080 in
Balanceable
No
Projection
3.54 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Finish
Heat Treated
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through
Torque - Maximum
55 ft-lb
Compatible Backup Screw Model Number
SKG-18L
Shank Type
Taper
Number of Coolant Ports
4
Balance Rating
G2.5
Includes Nut
Nut Included
Compatible Collet Series
SK16
Product Type
CAT Collet Chuck
Compatible Collet Wrench
9HC16
Speed - Maximum
20,000 RPM
Operating Pressure - Maximum
1,200 psi
Includes Coolant Screws
Coolant Screws Not Included

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.1080 in, Max. Collet Capacity 0.629 in, Projection 3.54 in, SK16
