  11. Collet Chuck, CAT50, 180DA, Project 4in

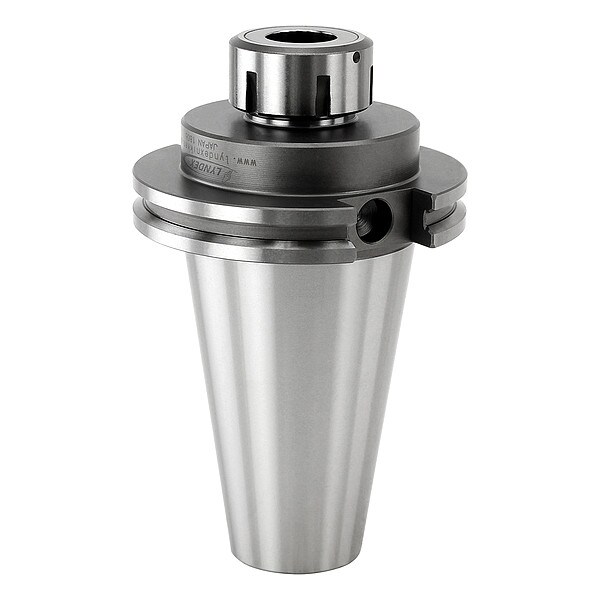

Lyndex-Nikken Collet Chuck, CAT50, 180DA, Project 4in C5007-0025-2.50 - main

Collet Chuck, CAT50, 180DA, Project 4in

  • Mfr # C5007-0025-2.50

  • Zoro # G0542005

product price: $452.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
2.5 in
Max. Collet Capacity
0.629 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C5007-0025-2.50
Zoro #
G0542005
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT50
Nut Dia.
1.650 in
Overall Length
6 1/2 in
Nose Dia.
1.6500 in
Nut Diameter
1.65 in
Shank Thread Size
M32
Outside Diameter - Maximum
1.65 in
Compatible Collet Size - Maximum
0.63 in
Compatible Collet Size - Minimum
0.02 in

Details

Item
Collet Chuck
Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
2.5 in
Max. Collet Capacity
0.629 in
Material
Molybdenum
Coolant Through
Yes
Pre-Balanced
Yes
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Compatible Collet Series
ER25
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through
Product Type
CAT Collet Chuck
Compatible Collet Wrench
025-SPAN
Number of Coolant Ports
4
Compatible Nut Model Number
E25-NUT
Includes Nut
Nut Included
Speed - Maximum
23,000 RPM
Shank Type
Taper
Torque - Maximum
73 ft-lb
Finish
Nickel Chrome

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.629 in, Projection 2.5 in, ER25
