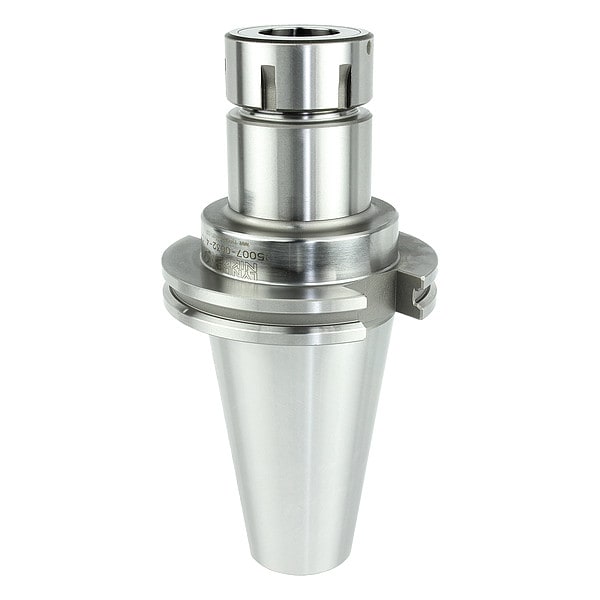

Collet Chuck, CAT50, 75TG, Project 3.500in

  • Mfr # C5007-0032-4.00
  • Zoro # G0541996
product price:
$
405.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
ER Collets
Projection
4 in
Coolant Through
Yes
Nut Dia.
1.970 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C5007-0032-4.00
Zoro #
G0541996
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Collet Chuck
Collet Series
ER32
For Use With
ER Collets
Projection
4 in
Coolant Through
Yes
Material
Molybdenum
Min. Collet Capacity
0.0780 in
Max. Collet Capacity
0.787 in
Balanceable
No
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Compatible Nut Model Number
E32-NUT
Compatible Collet Series
ER32
T.I.R. Tolerance
0 in
Includes Nut
Nut Included
Product Type
CAT Collet Chuck
Compatible Collet Wrench
032-SPAN
Speed - Maximum
23,000 RPM
Torque - Maximum
100 ft-lb
Coolant Supply
Coolant Through
Includes Coolant Screws
Coolant Screws Included
Shank Type
Taper
Finish
Nickel Chrome
Shell Material
Molybdenum

Dimensions

Nut Dia.
1.970 in
Taper Size
CAT50
Overall Length
8 in
Nose Dia.
1.9700 in
Compatible Collet Size - Minimum
0.08 in
Shank Thread Size
M40
Outside Diameter - Maximum
1.97 in
Nut Diameter
1.97 in
Compatible Collet Size - Maximum
0.79 in
Wire Rope Length
8 in
Length
8 in

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.0780 in, Max. Collet Capacity 0.787 in, Projection 4 in, ER32
