Shop LYNDEX-NIKKEN

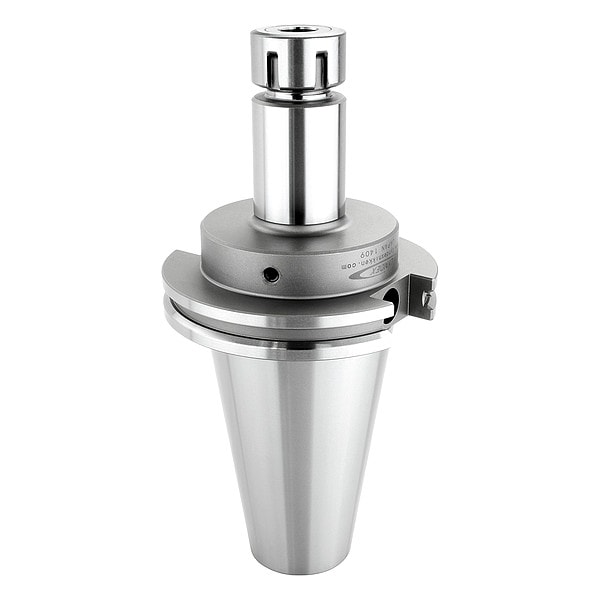

Collet Chuck, CAT50, ER32, Project 4in

  • Mfr # C5007-0016-4.12

  • Zoro # G0542039

product price:  $348.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER16
For Use With
ER Collets
Balanceable
No
Projection
4.12 in
Pre-Balanced
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C5007-0016-4.12
Zoro #
G0542039
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT50
Nut Dia.
1.260 in
Overall Length
8 1/8 in
Nose Dia.
1.2600 in
Compatible Collet Size - Minimum
0.02 in
Shank Thread Size
M22
Outside Diameter - Maximum
1.26 in
Compatible Collet Size - Maximum
0.39 in
Nut Diameter
1.26 in
Wire Rope Length
8 1/8 in

Details

Item
Collet Chuck
Collet Series
ER16
For Use With
ER Collets
Balanceable
No
Projection
4.12 in
Pre-Balanced
Yes
Material
Molybdenum
Coolant Through
Yes
Min. Collet Capacity
0.0190 in
Max. Collet Capacity
0.406 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Compatible Collet Wrench
016-SPAN
Compatible Collet Series
ER16
Torque - Maximum
40 ft-lb
Finish
Nickel Chrome
Shank Type
Taper
Coolant Supply
Coolant Through
T.I.R. Tolerance
0 in
Speed - Maximum
23,000 RPM
Includes Coolant Screws
Coolant Screws Included
Includes Nut
Nut Included
Compatible Nut Model Number
E16-NUT
Product Type
CAT Collet Chuck

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.406 in, Projection 4.12 in, ER16
