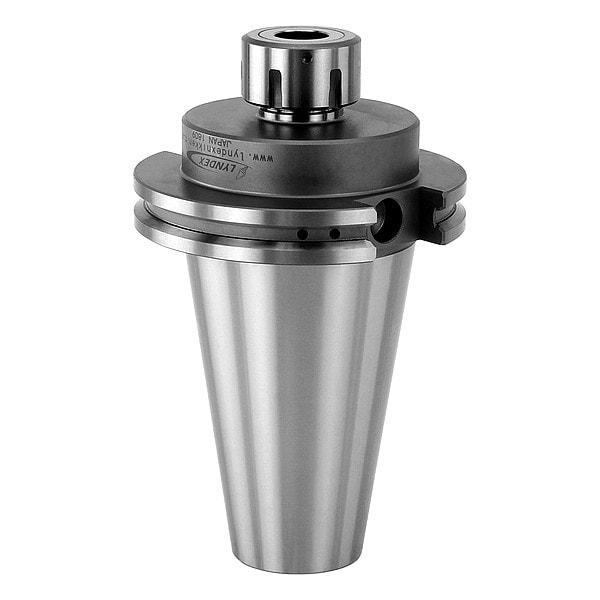

Lyndex-Nikken Collet Chuck, CAT50, ER40, Project 4in C5007-0020-2.50 - main

Collet Chuck, CAT50, ER40, Project 4in

  • Mfr # C5007-0020-2.50

  • Zoro # G0542011

product price: $460.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Coolant Through
Yes
Pre-Balanced
Yes
Taper Size
CAT50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C5007-0020-2.50
Zoro #
G0542011
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT50
Nut Dia.
1.380 in
Overall Length
6 1/2 in
Nose Dia.
1.3800 in
Compatible Collet Size - Minimum
0.02 in
Shank Thread Size
M25
Nut Diameter
1.38 in
Outside Diameter - Maximum
1.38 in
Compatible Collet Size - Maximum
0.51 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Coolant Through
Yes
Pre-Balanced
Yes
Material
Molybdenum
Max. Collet Capacity
0.511 in
Projection
2.5 in
Balanceable
No
Min. Collet Capacity
0.0390 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Finish
Nickel Chrome
Compatible Collet Series
ER20
Coolant Supply
Coolant Through
Product Type
CAT Collet Chuck
Speed - Maximum
23,000 RPM
Shank Type
Taper
T.I.R. Tolerance
0 in
Compatible Nut Model Number
E20-NUT
Includes Coolant Screws
Coolant Screws Included
Includes Nut
Nut Included
Compatible Collet Wrench
020-SPAN
Torque - Maximum
59 ft-lb
Number of Coolant Ports
4

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 2.5 in, ER20
