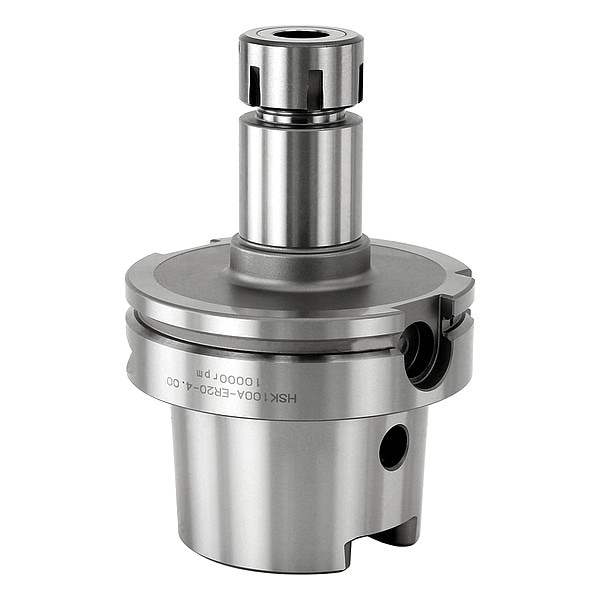

Lyndex-Nikken Collet Chuck, HSK100, ER25, Project 6in HSK100A-ER20-4.00 - main

Collet Chuck, HSK100, ER25, Project 6in

  • Mfr # HSK100A-ER20-4.00

  • Zoro # G0539421

product price: $613.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
4 in
Taper Size
HSK100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK100A-ER20-4.00
Zoro #
G0539421
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
HSK100
Nut Dia.
1.650 in
Overall Length
5 31/32 in
Nose Dia.
1.378 in
Shank Thread Size
M25
Nut Diameter
1.38 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.38 in
Compatible Collet Size - Maximum
0.51 in

Details

Item
Collet Chuck
Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
4 in
Balanceable
No
Pre-Balanced
Yes
Max. Collet Capacity
0.511 in
Coolant Through
Yes
Material
Molybdenum
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
T.I.R. Tolerance
0 in
Shank Type
Taper
Speed - Maximum
25,000 RPM
Compatible Collet Series
ER20
Torque - Maximum
59 ft-lb
Includes Coolant Screws
Coolant Screws Included
Includes Nut
Nut Included
Coolant Supply
Coolant Through
Compatible Collet Wrench
020-SPAN
Product Type
HSK Collet Chuck
Finish
Nickel Chrome

Description

Collet Chuck, Taper Size HSK100, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 4 in, ER25
