Shop LYNDEX-NIKKEN

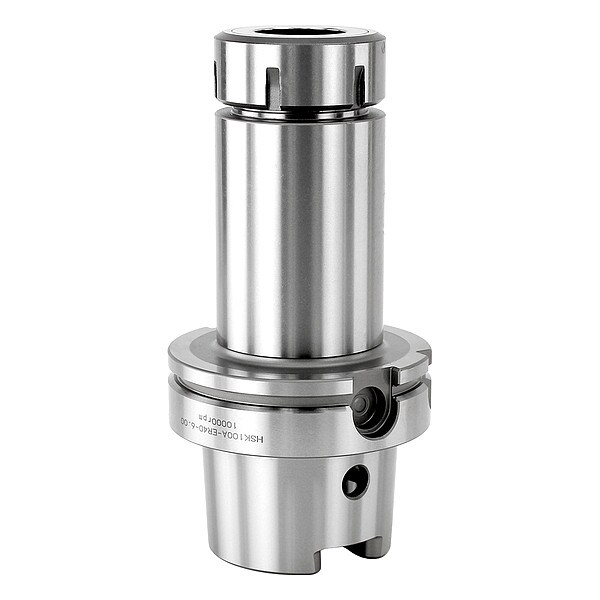

Collet Chuck, HSK100, SK10, Project 150mm

  • Mfr # HSK100A-ER40-6.00

  • Zoro # G0539351

product price:  $829.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK10
For Use With
SK Collets
Taper Size
HSK100
Min. Collet Capacity
0.1250 in
Material
Molybdenum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HSK100A-ER40-6.00
Zoro #
G0539351
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
HSK100
Nut Dia.
1.083 in
Overall Length
7 31/32 in
Nose Dia.
2.4800 in
Compatible Collet Size - Minimum
0.12 in
Nut Diameter
2.48 in
Compatible Collet Size - Maximum
1.02 in
Shank Thread Size
M50
Outside Diameter - Maximum
2.44 in

Details

Item
Collet Chuck
Collet Series
SK10
For Use With
SK Collets
Min. Collet Capacity
0.1250 in
Material
Molybdenum
Balanceable
No
Max. Collet Capacity
1.023 in
Coolant Through
Yes
Pre-Balanced
Yes
Projection
6 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Speed - Maximum
25,000 RPM
Finish
Nickel Chrome
Coolant Supply
Coolant Through
Includes Coolant Screws
Coolant Screws Included
Product Type
HSK Collet Chuck
Includes Nut
Nut Included
Compatible Collet Wrench
040-SPAN
Compatible Collet Series
ER40
Shank Type
Taper
T.I.R. Tolerance
0 in
Torque - Maximum
125 ft-lb

Description

Collet Chuck, Taper Size HSK100, Min. Collet Capacity 0.1250 in, Max. Collet Capacity 1.023 in, Projection 6 in, SK10
