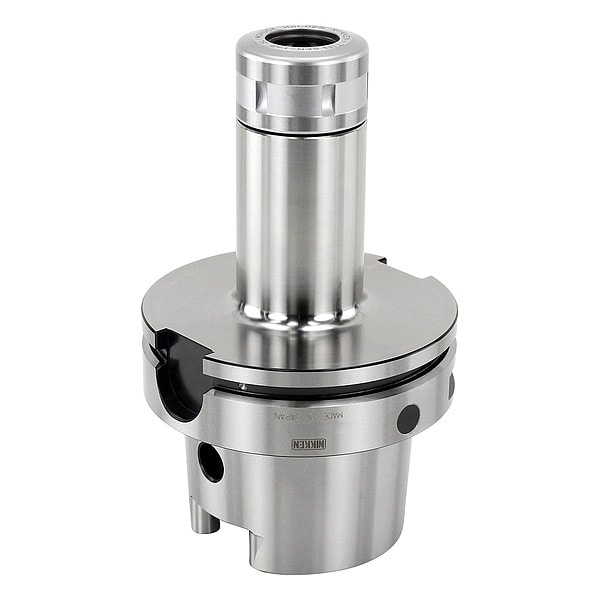

Lyndex-Nikken Collet Chuck, HSK100, SK6, Project 105mm HSK100A-SK25C-145 - main

Collet Chuck, HSK100, SK6, Project 105mm

  • Mfr # HSK100A-SK25C-145

  • Zoro # G0539281

product price: $756.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK25
For Use With
SK Collets
Coolant Through
Yes
Min. Collet Capacity
0.6100 in
Max. Collet Capacity
1.000 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK100A-SK25C-145
Zoro #
G0539281
UPC #
-
Country of Origin
Japan

Dimensions

Taper Size
HSK100
Nut Dia.
2.165 in
Overall Length
7 43/64 in
Nose Dia.
2.1650 in
Compatible Collet Size - Minimum
0.19 in
Compatible Collet Size - Maximum
1 in
Outside Diameter - Maximum
2.17 in
Nut Diameter
2.17 in

Details

Item
Collet Chuck
Collet Series
SK25
For Use With
SK Collets
Coolant Through
Yes
Min. Collet Capacity
0.6100 in
Max. Collet Capacity
1.000 in
Pre-Balanced
Yes
Material
High Speed Steel
Balanceable
No
Projection
5.71 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Includes Nut
Nut Included
Operating Pressure - Maximum
1,200 psi
Compatible Backup Screw Model Number
SKG25-18HGE
Torque - Maximum
63 ft-lb
Finish
Heat Treated
Compatible Collet Wrench
9HC22
Product Type
HSK Collet Chuck
T.I.R. Tolerance
0 in
Speed - Maximum
15,000 RPM
Shank Type
Taper
Compatible Collet Series
SK25
Coolant Supply
Coolant Through
Includes Coolant Screws
Coolant Screws Not Included

Description

Collet Chuck, Taper Size HSK100, Min. Collet Capacity 0.6100 in, Max. Collet Capacity 1.000 in, Projection 5.71 in, SK25
