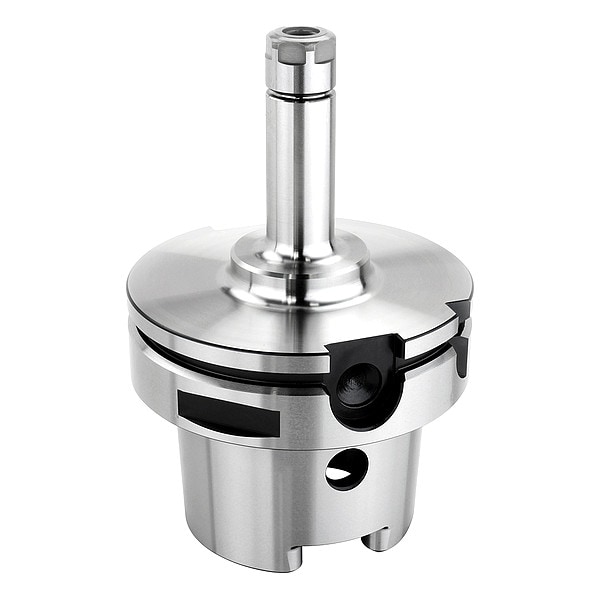

Lyndex-Nikken Collet Chuck, HSK100, VC13, Project 105mm HSK100A-SK6C-105 - main

Collet Chuck, HSK100, VC13, Project 105mm

  • Mfr # HSK100A-SK6C-105

  • Zoro # G0539275

product price: $663.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK6
For Use With
VC Collets
Max. Collet Capacity
0.236 in
Projection
4.13 in
Nut Dia.
1.575 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK100A-SK6C-105
Zoro #
G0539275
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.575 in
Taper Size
HSK100
Overall Length
6 3/32 in
Nose Dia.
0.7680 in
Compatible Collet Size - Maximum
0.25 in
Compatible Collet Size - Minimum
0.03 in
Outside Diameter - Maximum
0.77 in
Nut Diameter
0.77 in

Details

Item
Collet Chuck
Collet Series
SK6
For Use With
VC Collets
Max. Collet Capacity
0.236 in
Projection
4.13 in
Material
High Speed Steel
Coolant Through
Yes
Pre-Balanced
Yes
Balanceable
No
Min. Collet Capacity
0.0280 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Product Type
HSK Collet Chuck
Operating Pressure - Maximum
1,200 psi
Includes Nut
Nut Included
Shank Type
Taper
Coolant Supply
Coolant Through
Includes Coolant Screws
Coolant Screws Not Included
T.I.R. Tolerance
0 in
Speed - Maximum
15,000 RPM
Finish
Heat Treated
Compatible Collet Series
SK6
Torque - Maximum
22 ft-lb
Compatible Collet Wrench
SKL-6W

Description

Collet Chuck, Taper Size HSK100, Min. Collet Capacity 0.0280 in, Max. Collet Capacity 0.236 in, Projection 4.13 in, SK6
