  11. Collet Chuck, HSK32E, SK6, Project 50mm

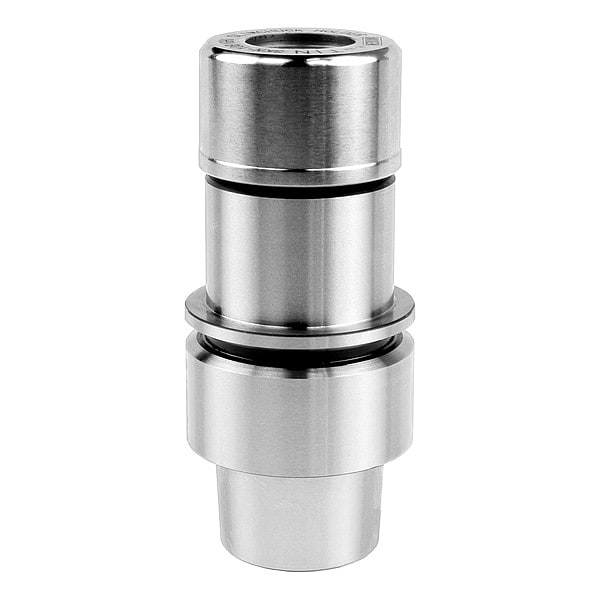

Lyndex-Nikken Collet Chuck, HSK32E, SK6, Project 50mm HSK32E-SK10-60P - main

Collet Chuck, HSK32E, SK6, Project 50mm

  • Mfr # HSK32E-SK10-60P

  • Zoro # G0539205

product price: $555.99
/ea
Free Shipping & Returns

Key Features

Collet Series
SK10
For Use With
SK Collets
Min. Collet Capacity
0.0690 in
Balanceable
No
Max. Collet Capacity
0.393 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK32E-SK10-60P
Zoro #
G0539205
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.083 in
Taper Size
HSK32
Overall Length
2 63/64 in
Nose Dia.
1.0830 in
Compatible Collet Size - Minimum
0.04 in
Outside Diameter - Maximum
1.08 in
Nut Diameter
1.08 in
Compatible Collet Size - Maximum
0.39 in

Details

Item
Collet Chuck
Collet Series
SK10
For Use With
SK Collets
Min. Collet Capacity
0.0690 in
Balanceable
No
Max. Collet Capacity
0.393 in
Material
High Speed Steel
Pre-Balanced
Yes
Coolant Through
Yes
Projection
2.36 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
T.I.R. Tolerance
0 in
Finish
Heat Treated
Torque - Maximum
41 ft-lb
Includes Coolant Screws
Coolant Screws Not Included
Coolant Supply
Coolant Through
Speed - Maximum
50,000 RPM
Shank Type
Taper
Operating Pressure - Maximum
1,200 psi
Compatible Collet Wrench
GH10
Compatible Collet Series
SK10
Balance Rating
G2.5
Product Type
HSK Collet Chuck
Includes Nut
Nut Included

Description

Collet Chuck, Taper Size HSK32, Min. Collet Capacity 0.0690 in, Max. Collet Capacity 0.393 in, Projection 2.36 in, SK10
