  11. Collet Chuck, HSK40, VC6, Project 65mm

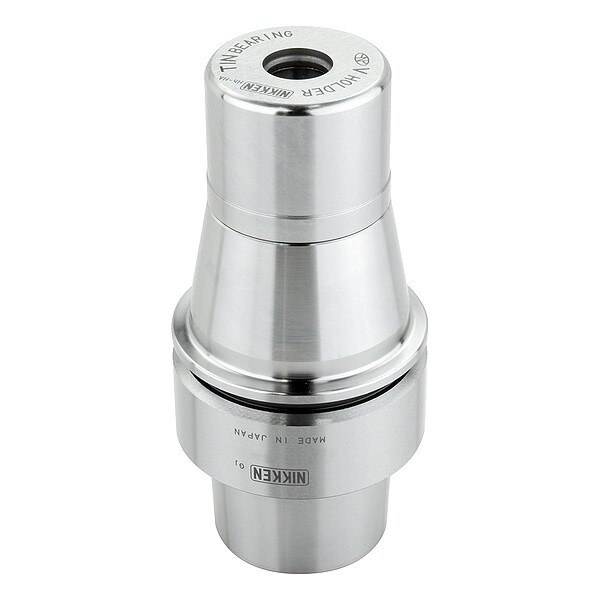

Lyndex-Nikken Collet Chuck, HSK40, VC6, Project 65mm HSK40E-VC13-120 - main

Collet Chuck, HSK40, VC6, Project 65mm

  • Mfr # HSK40E-VC13-120

  • Zoro # G0539108

product price: $632.99
/ea
Free Shipping & Returns

Key Features

Collet Series
VC6
For Use With
VC Collets
Nut Dia.
1.083 in
Max. Collet Capacity
0.511 in
Min. Collet Capacity
0.1180 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HSK40E-VC13-120
Zoro #
G0539108
UPC #
-
Country of Origin
Japan

Dimensions

Nut Dia.
1.083 in
Taper Size
HSK40
Overall Length
5 33/64 in
Nose Dia.
1.5750 in
Compatible Collet Size - Minimum
0.12 in
Outside Diameter - Maximum
1.58 in
Nut Diameter
1.58 in
Compatible Collet Size - Maximum
0.51 in

Details

Item
Collet Chuck
Collet Series
VC6
For Use With
VC Collets
Max. Collet Capacity
0.511 in
Min. Collet Capacity
0.1180 in
Coolant Through
Yes
Balanceable
No
Pre-Balanced
Yes
Material
High Speed Steel
Projection
4.72 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Compatible Collet Series
VC13
Product Type
HSK Collet Chuck
Includes Coolant Screws
Coolant Screws Included
Shank Type
Taper
Speed - Maximum
40,000 RPM
Compatible Collet Wrench
GH16
Torque - Maximum
55 ft-lb
Balance Rating
G2.5
Includes Nut
Nut Included
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through

Description

Collet Chuck, Taper Size HSK40, Min. Collet Capacity 0.1180 in, Max. Collet Capacity 0.511 in, Projection 4.72 in, VC6
