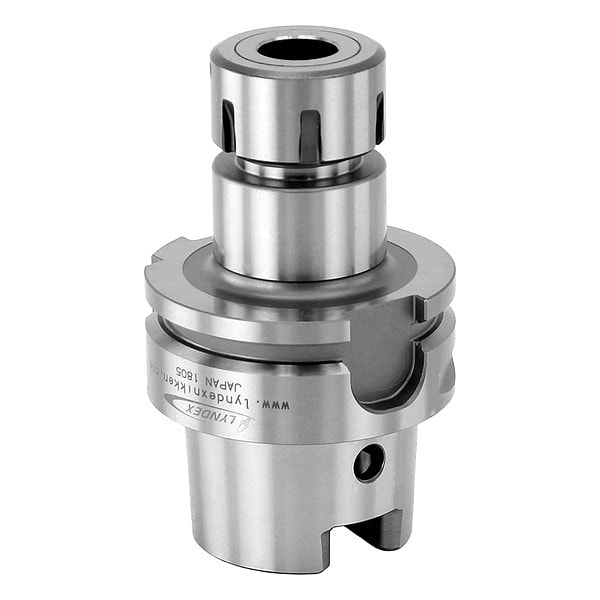

Collet Chuck, HSK63, ER20, Project 5in

  • Mfr # HSK63A-ER20-3.00
  • Zoro # G0538940
product price:
$
425.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
ER Collets
Pre-Balanced
Yes
Min. Collet Capacity
0.0390 in
Nut Dia.
1.380 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSK63A-ER20-3.00
Zoro #
G0538940
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Collet Chuck
Collet Series
ER20
For Use With
ER Collets
Pre-Balanced
Yes
Min. Collet Capacity
0.0390 in
Max. Collet Capacity
0.511 in
Material
Molybdenum
Coolant Through
Yes
Balanceable
No
Projection
3 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Coolant Supply
Coolant Through
Finish
Nickel Chrome
Compatible Collet Wrench
020-SPAN
Includes Nut
Nut Included
Compatible Collet Series
ER20
Torque - Maximum
59 ft-lb
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Speed - Maximum
25,000 RPM
Product Type
HSK Collet Chuck
Shank Type
Taper
Shell Material
Molybdenum

Dimensions

Nut Dia.
1.380 in
Taper Size
HSK63
Overall Length
4 17/64 in
Nose Dia.
1.378 in
Nut Diameter
1.38 in
Shank Thread Size
M25
Compatible Collet Size - Maximum
0.51 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.38 in
Wire Rope Length
4 17/64 in
Length
4 17/64 in

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.511 in, Projection 3 in, ER20
