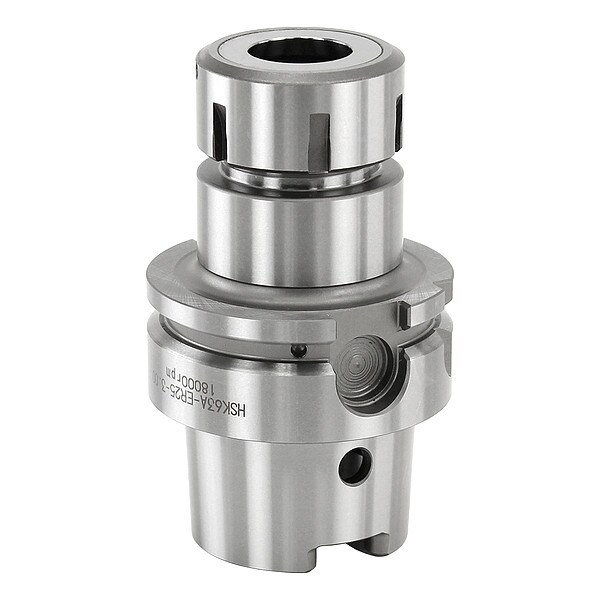

Collet Chuck, HSK63, ER25, Project 5in

  • Mfr # HSK63A-ER25-3.00
  • Zoro # G0538925
product price:
$
456.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
3 in
Pre-Balanced
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HSK63A-ER25-3.00
Zoro #
G0538925
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
HSK63
Nut Dia.
1.650 in
Overall Length
4 17/64 in
Nose Dia.
1.6540 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.65 in
Compatible Collet Size - Maximum
0.63 in
Nut Diameter
1.65 in
Shank Thread Size
M32
Wire Rope Length
4 17/64 in
Length
4 17/64 in

Details

Item
Collet Chuck
Collet Series
ER25
For Use With
ER Collets
Min. Collet Capacity
0.0390 in
Projection
3 in
Pre-Balanced
Yes
Max. Collet Capacity
0.629 in
Coolant Through
Yes
Balanceable
No
Material
Molybdenum
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Finish
Nickel Chrome
Compatible Collet Wrench
025-SPAN
Torque - Maximum
73 ft-lb
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
ER25
T.I.R. Tolerance
0 in
Coolant Supply
Coolant Through
Shank Type
Taper
Speed - Maximum
25,000 RPM
Product Type
HSK Collet Chuck
Includes Nut
Nut Included
Shell Material
Molybdenum

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.629 in, Projection 3 in, ER25
