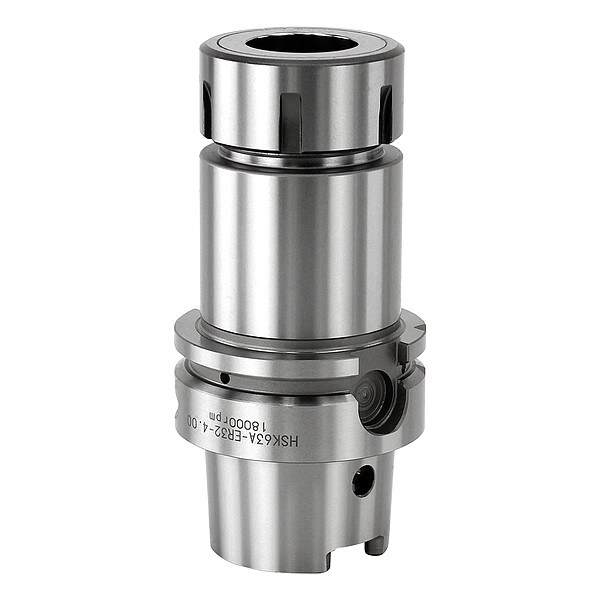

Collet Chuck, HSK63, ER32, Project 6in

  • Mfr # HSK63A-ER32-4.00
  • Zoro # G0538907
product price:
$
437.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Max. Collet Capacity
0.787 in
Material
Molybdenum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSK63A-ER32-4.00
Zoro #
G0538907
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Collet Chuck
Collet Series
ER32
For Use With
ER Collets
Coolant Through
Yes
Max. Collet Capacity
0.787 in
Material
Molybdenum
Min. Collet Capacity
0.0780 in
Projection
4 in
Pre-Balanced
Yes
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Speed - Maximum
25,000 RPM
Compatible Collet Wrench
032-SPAN
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
ER32
Torque - Maximum
100 ft-lb
Finish
Nickel Chrome
Includes Nut
Nut Included
Shank Type
Taper
Product Type
HSK Collet Chuck
Coolant Supply
Coolant Through
T.I.R. Tolerance
0 in
Shell Material
Molybdenum
Traction Material
Molybdenum

Dimensions

Taper Size
HSK63
Nut Dia.
1.970 in
Overall Length
5 17/64 in
Nose Dia.
1.9690 in
Shank Thread Size
M40
Outside Diameter - Maximum
1.97 in
Compatible Collet Size - Maximum
0.79 in
Nut Diameter
1.97 in
Compatible Collet Size - Minimum
0.08 in
Wire Rope Length
5 17/64 in
Length
5 17/64 in

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.0780 in, Max. Collet Capacity 0.787 in, Projection 4 in, ER32
