Lyndex-Nikken Collet Chuck, HSK63, VMK12, Project 110mm HSK63A-ER40-6.00 - main

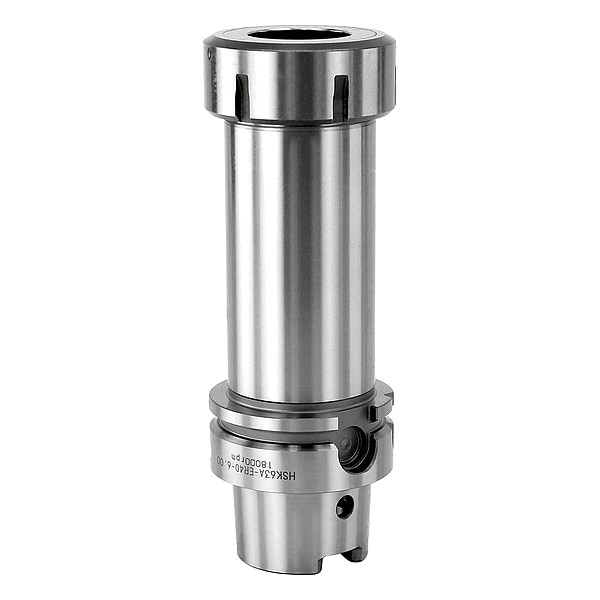

Collet Chuck, HSK63, VMK12, Project 110mm

  • Mfr # HSK63A-ER40-6.00

  • Zoro # G0538870

product price: $610.99
/ea
Free Shipping & Returns

Key Features

Collet Series
VMK12
For Use With
MPK/VMK Collets
Max. Collet Capacity
1.023 in
Balanceable
No
Taper Size
HSK63
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSK63A-ER40-6.00
Zoro #
G0538870
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
HSK63
Overall Length
7 17/64 in
Nose Dia.
2.4800 in
Compatible Collet Size - Minimum
0.12 in
Outside Diameter - Maximum
2.44 in
Compatible Collet Size - Maximum
1.02 in
Nut Diameter
2.48 in
Shank Thread Size
M50

Details

Item
Collet Chuck
Collet Series
VMK12
For Use With
MPK/VMK Collets
Max. Collet Capacity
1.023 in
Balanceable
No
Material
Molybdenum
Projection
6 in
Coolant Through
Yes
Min. Collet Capacity
0.1250 in
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Coolant Supply
Coolant Through
Includes Nut
Nut Included
Shank Type
Taper
Compatible Collet Wrench
040-SPAN
Speed - Maximum
25,000 RPM
Finish
Nickel Chrome
Compatible Collet Series
ER40
Includes Coolant Screws
Coolant Screws Included
Torque - Maximum
125 ft-lb
Product Type
HSK Collet Chuck
T.I.R. Tolerance
0 in

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.1250 in, Max. Collet Capacity 1.023 in, Projection 6 in, VMK12
